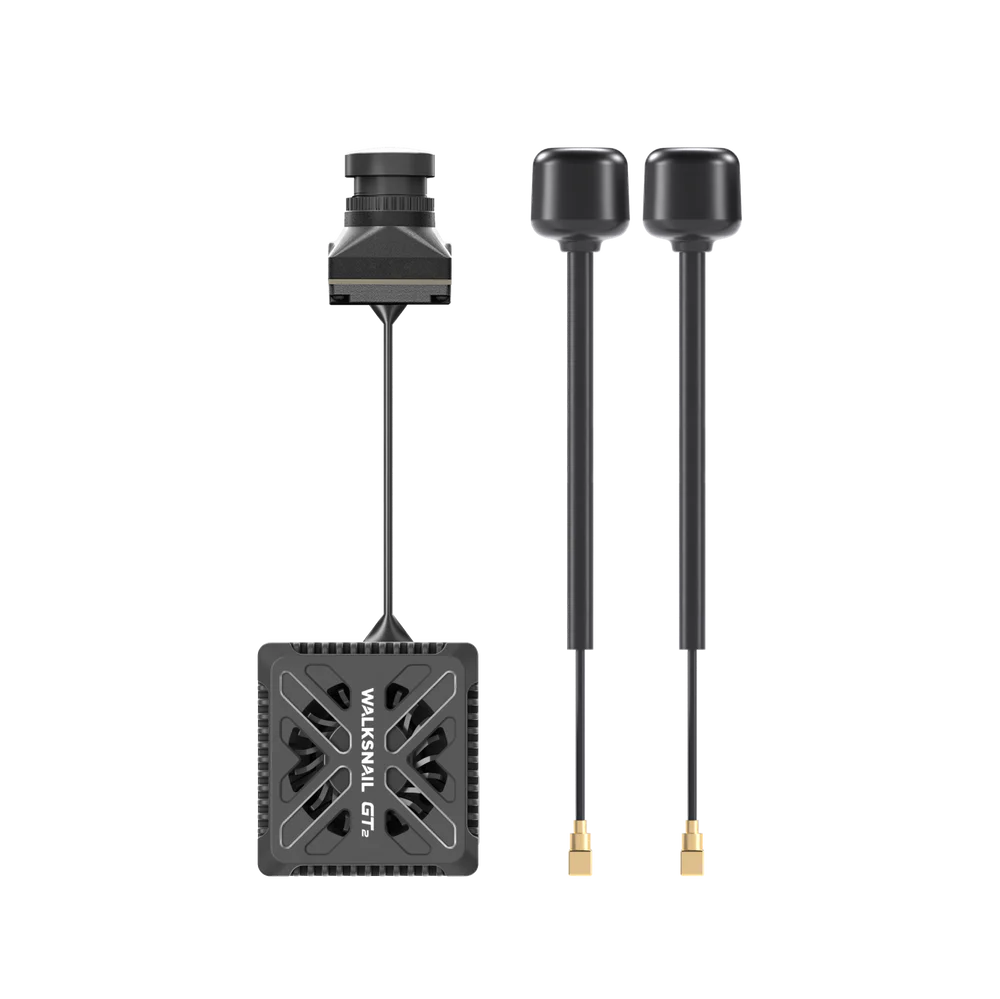

Walksnail Avatar GT2 Kit

• Stable digital HD video transmission up to 20km with low 22ms latency for precise, real-time control
• Automatically adjusts power up to 2W and switches channels in milliseconds to avoid interference
• Flagship Sony sensor balances high-contrast lighting to minimize overexposure and maintains clear details in low light

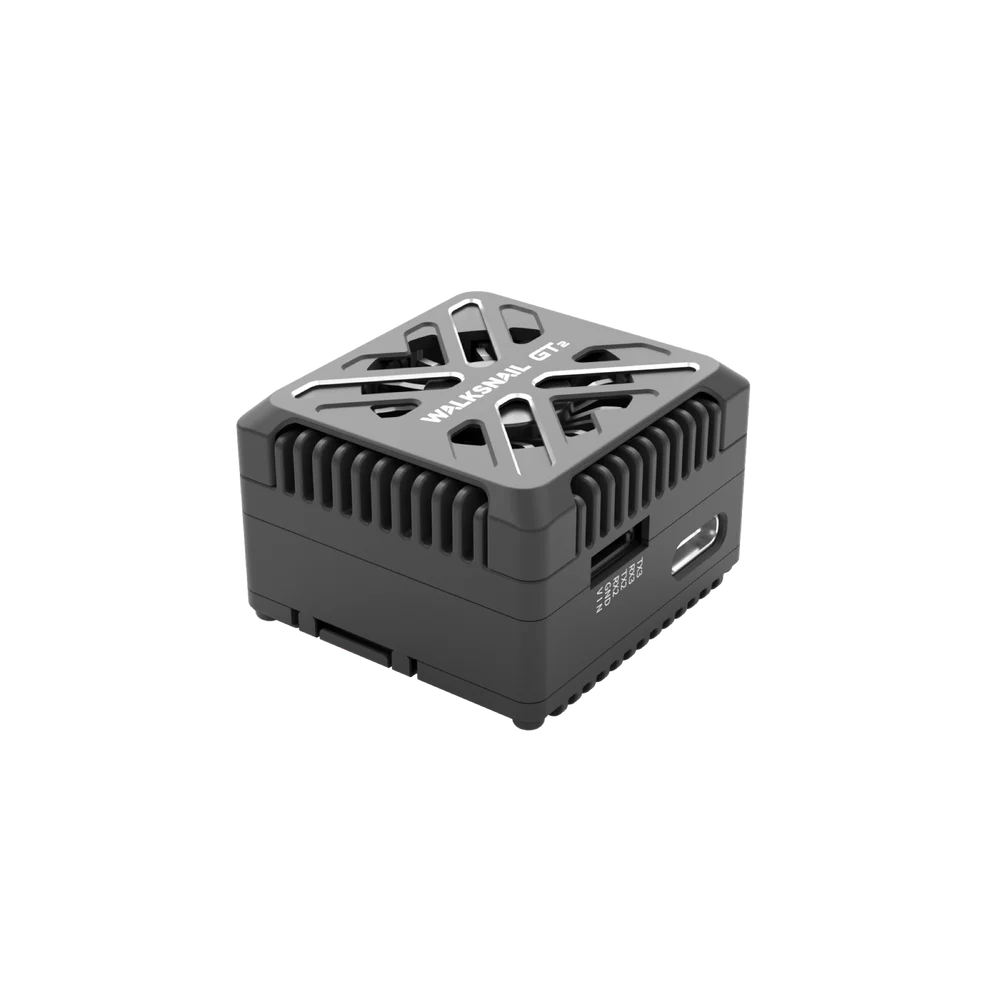

• Improved cooling fan and optimized algorithms reduce power consumption, effectively minimizing thermal throttling during extended flights
• Immersive head tracking when paired with compatible goggles and gimbals, providing a true cockpit feel

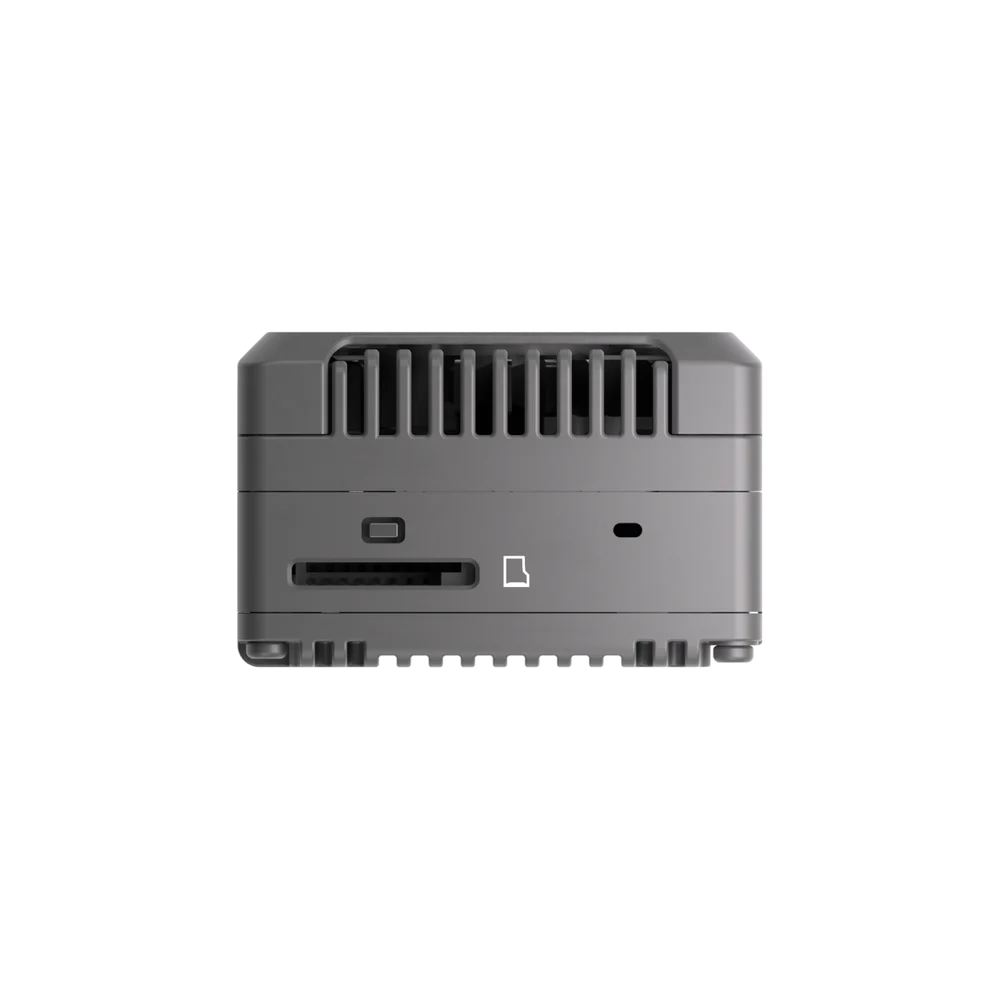

• Features a Type-C port for direct PC connection and a spring-loaded slot for quick, tool-free SD card extraction

Powered by a new integrated design, the GT2 delivers a superior digital video experience with unmatched performance and reliability

Adaptive Power
Dynamic 2W Max Output

New firmware, smarter transmission. With dynamic power adjustment, the system instantly optimizes output power based on flight environment and temperature, delivering a smoother and more reliable flight experience.

Frequency Hopping
Fast, Stable, Smart

Supports both fixed channel and frequency hopping modes. When frequency hopping is active, it continuously scans and assesses channel quality during flight. Upon detecting interference, it switches to a clearer channel within milliseconds for seamless hopping, ensuring stable, clear and uninterrupted video transmission

 Every Frame Pops, Every Move Flows

Flagship Sony II sensor inside. Handles bright sun and low light with ease clean footage day or night. Shines after dark, pulling in distant scenes with stunning clarity. Every flight, cinematic.

 Head-Tracking Ready

Works with CaddxFPV GM Gimbals & Walksnail Avatar Goggles. Instant head movement response for a true cockpit feel. No soldering needed.

SPECIFICATIONS:

Parameter	Details
Name	Avatar GT2
Camera Name	Avatar Pro
Sensor	1/1.8-Inch Sony Starvis II Sensor
Communication Frequency	5.725 – 5.850 GHz
Transmission Power (EIRP)	FCC: ≤33 dBm; CE: <14 dBm; SRRC: <20 dBm; MIC: <25 dBm
Channels	4
Latency	Minimum 22 ms
Image Resolution	1080p / 720p
OSD	Canvas Mode
Supported FC	Betaflight; INAV; Fettec; KISS; ArduPilot
Power Input	11.1V – 25.2V
I/O Interface	JST1.0×6 (Power Cable); Micro SD Card Slot; USB Type-C
SD Card Support	Up to 256GB
Antenna Connector	MMCX
Antenna Polarization	LHCP
Mounting Hole	25.5×25.5mm; 20×20mm
Dimensions	VTX: 34×36×23.5mm; Camera: 19×19×24mm
Weight	52g (Antenna Not Included)
Operating Temperature	-10°C to 40°C

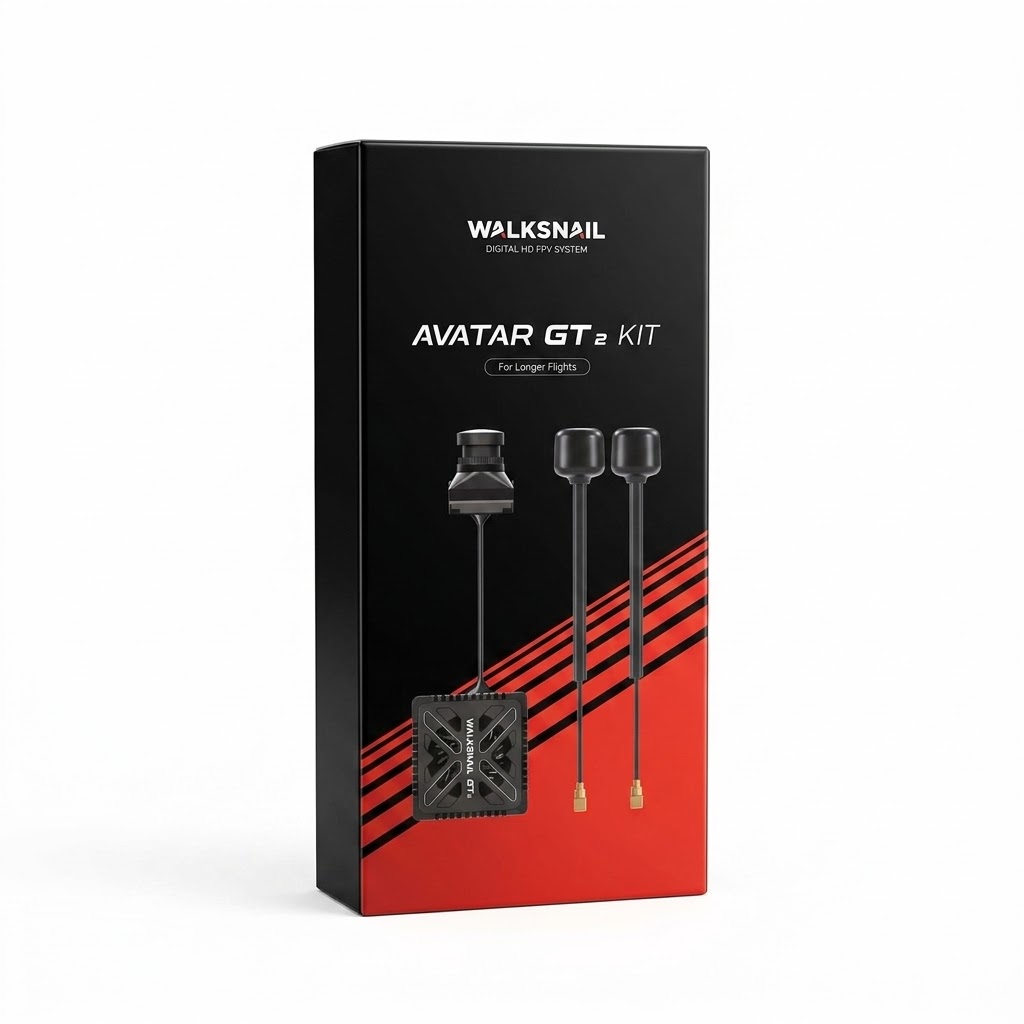

Package Includes:

Avatar GT2

X 1

Power Cable

X 1

Accessory Kit

X 1

User Manual

X 1
