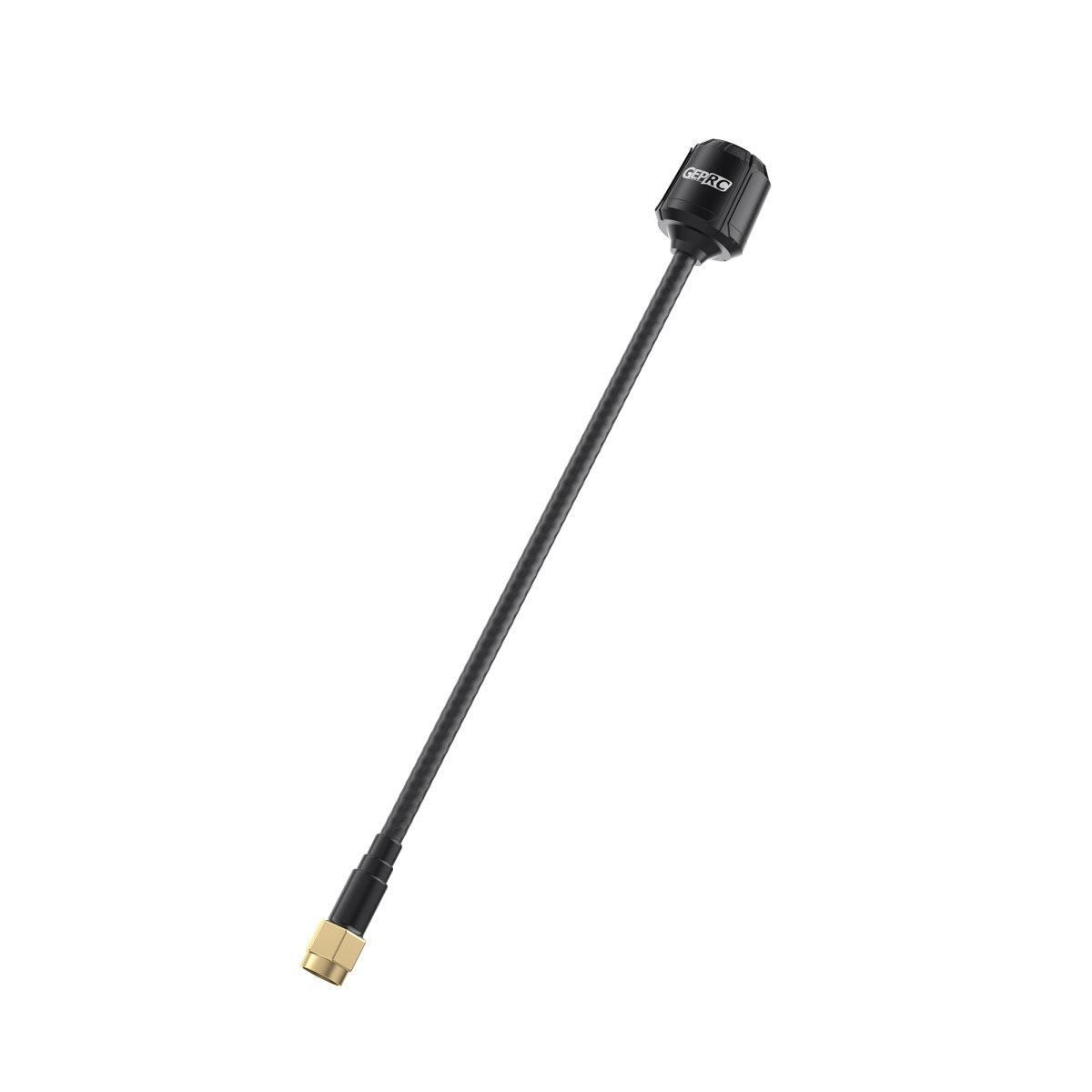

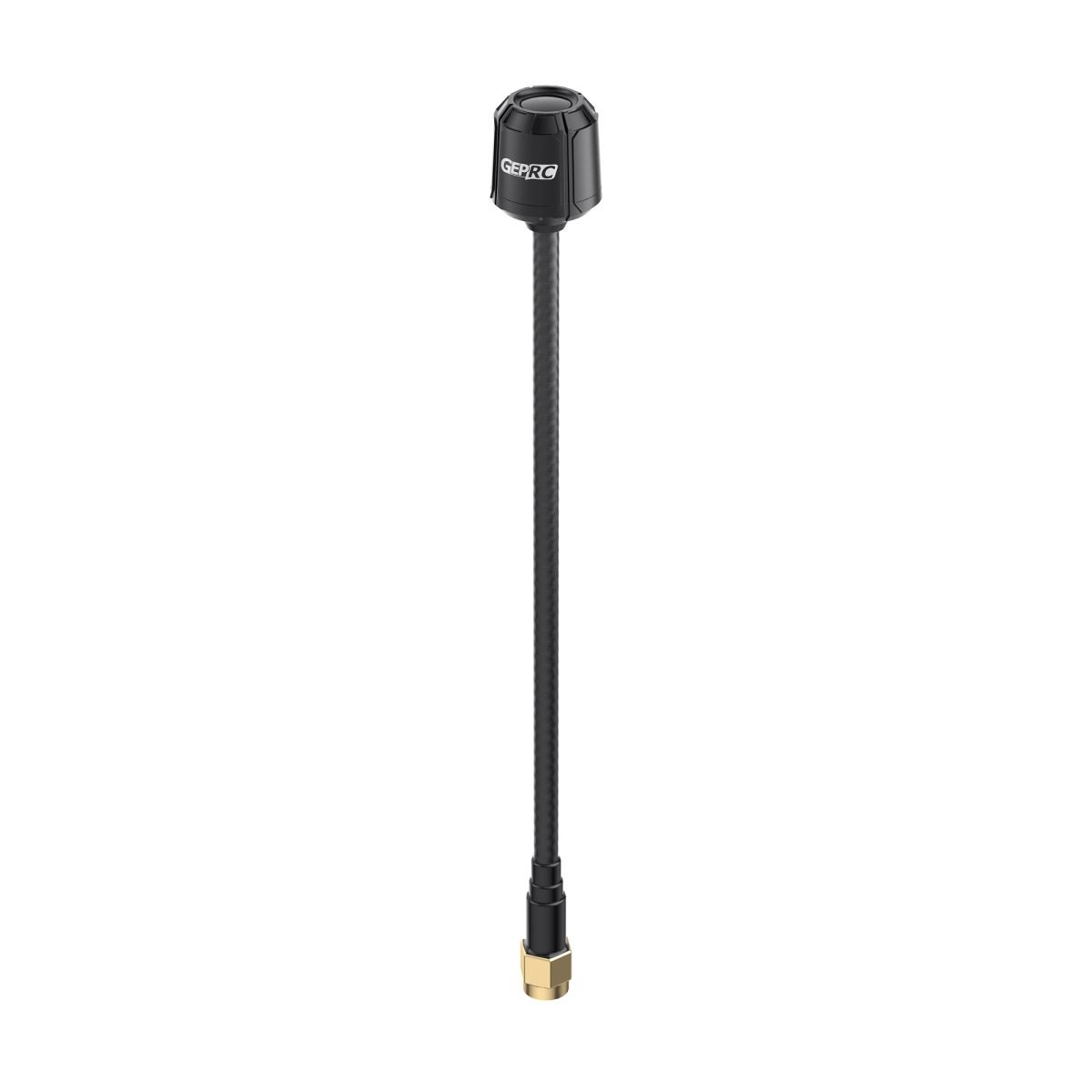

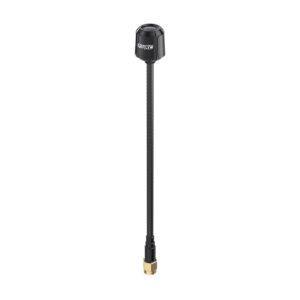

GEPRC Momoda2 5.8G antenna LHCP SMA 120mm
Original price was: ₹999.00.₹649.00Current price is: ₹649.00. including GST
In stock
This item: GEPRC Momoda2 5.8G antenna LHCP SMA 120mm
In stock
Original price was: ₹999.00.₹649.00Current price is: ₹649.00. including GST
Original price was: ₹999.00.₹649.00Current price is: ₹649.00. including GST
Original price was: ₹17,499.00.₹16,499.00Current price is: ₹16,499.00. including GST
Original price was: ₹349.00.₹249.00Current price is: ₹249.00. including GST
Original price was: ₹2,349.00.₹1,349.00Current price is: ₹1,349.00. including GST
Original price was: ₹1,699.00.₹1,349.00Current price is: ₹1,349.00. including GST
Summary
The GEPRC Momoda2 5.8G antenna adopts the latest radio frequency solution in the FPV industry, pairing PCB with FPC structure to enhance signal frequency consistency while minimizing signal transmission power loss. It offers two polarization options, RHCP and LHCP, within the 5.8GHz frequency band.
Features
- The ingenious exterior design integrates a sleek metallic style, appealing to the eye.
- The advanced radio frequency structure effectively minimizes transmission loss.
- The connectors come in various lengths and styles to accommodate diverse application needs.
- Every antenna undergoes testing with a spectrum analyzer to ensure compliance with SWR standards.
Specifications
- Model： GEPRC Momoda2 5.8G antenna
- Center Frequency： 5.65G
- Bandwidth：5.3GHz～6GHz

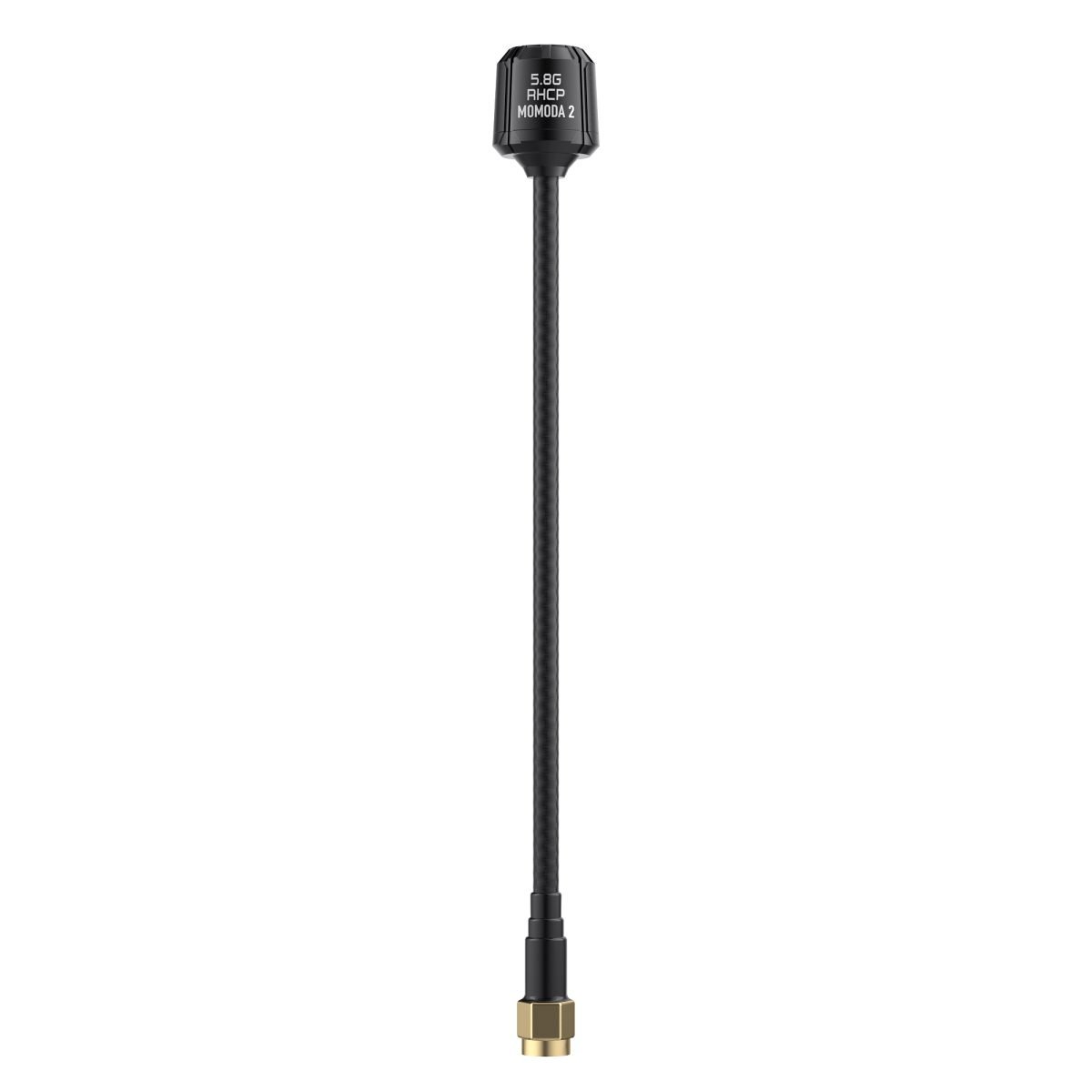

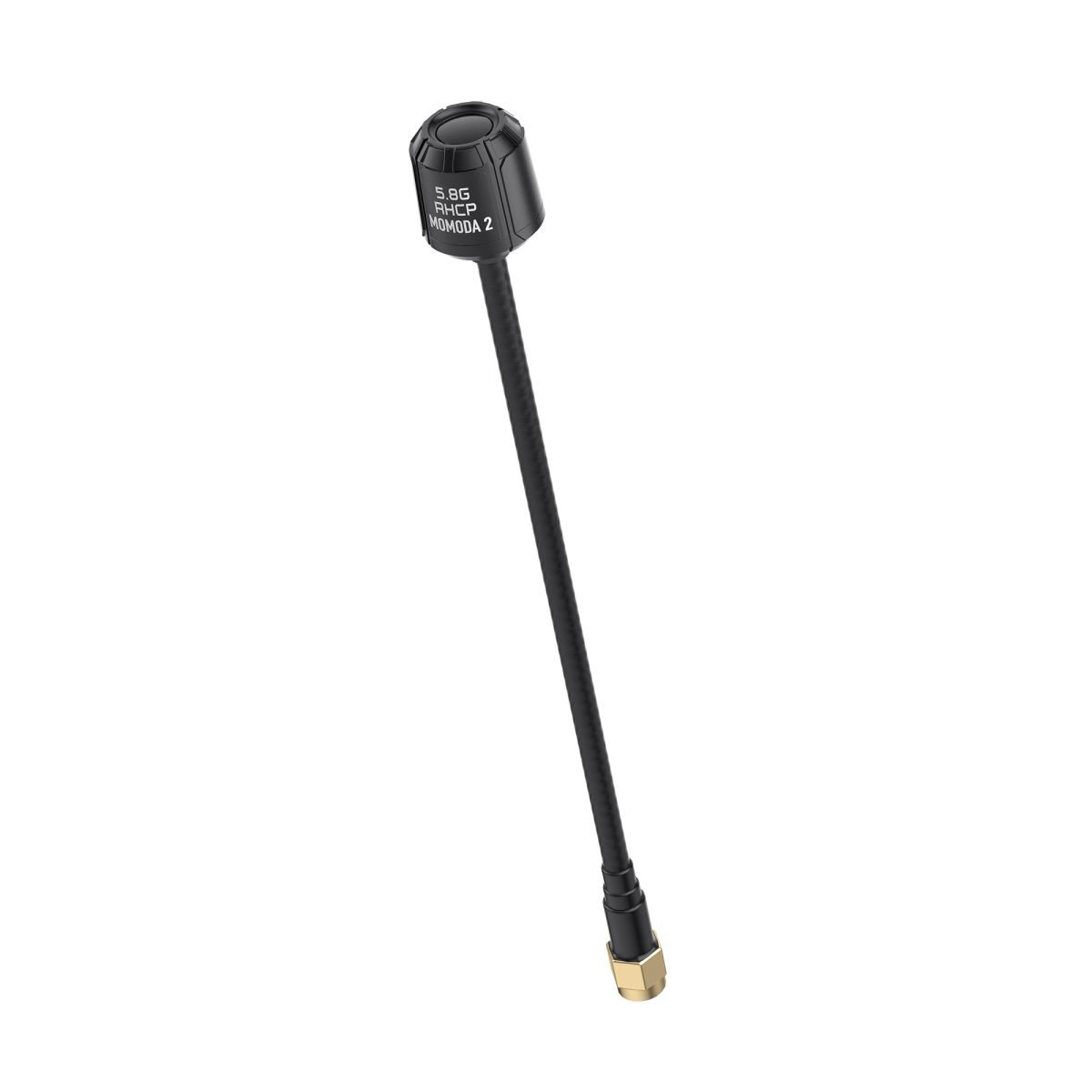

- Polarization: LHCP/RHCP
- Gain: 2.45dbi
- Axial Ratio：≤3
- SWR: ≤1.43
- Radiation Efficiency: 85%
- Cross Polarization Suppression: -25dB
- Length：120mm-170mm
- Antenna Design: FPC+PCB
- Antenna Weight: 3.8g-11.6g
- Enclosure Material: ABS

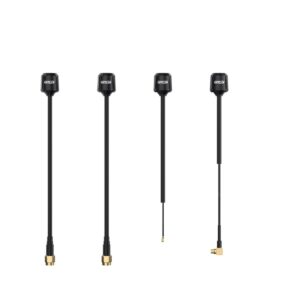

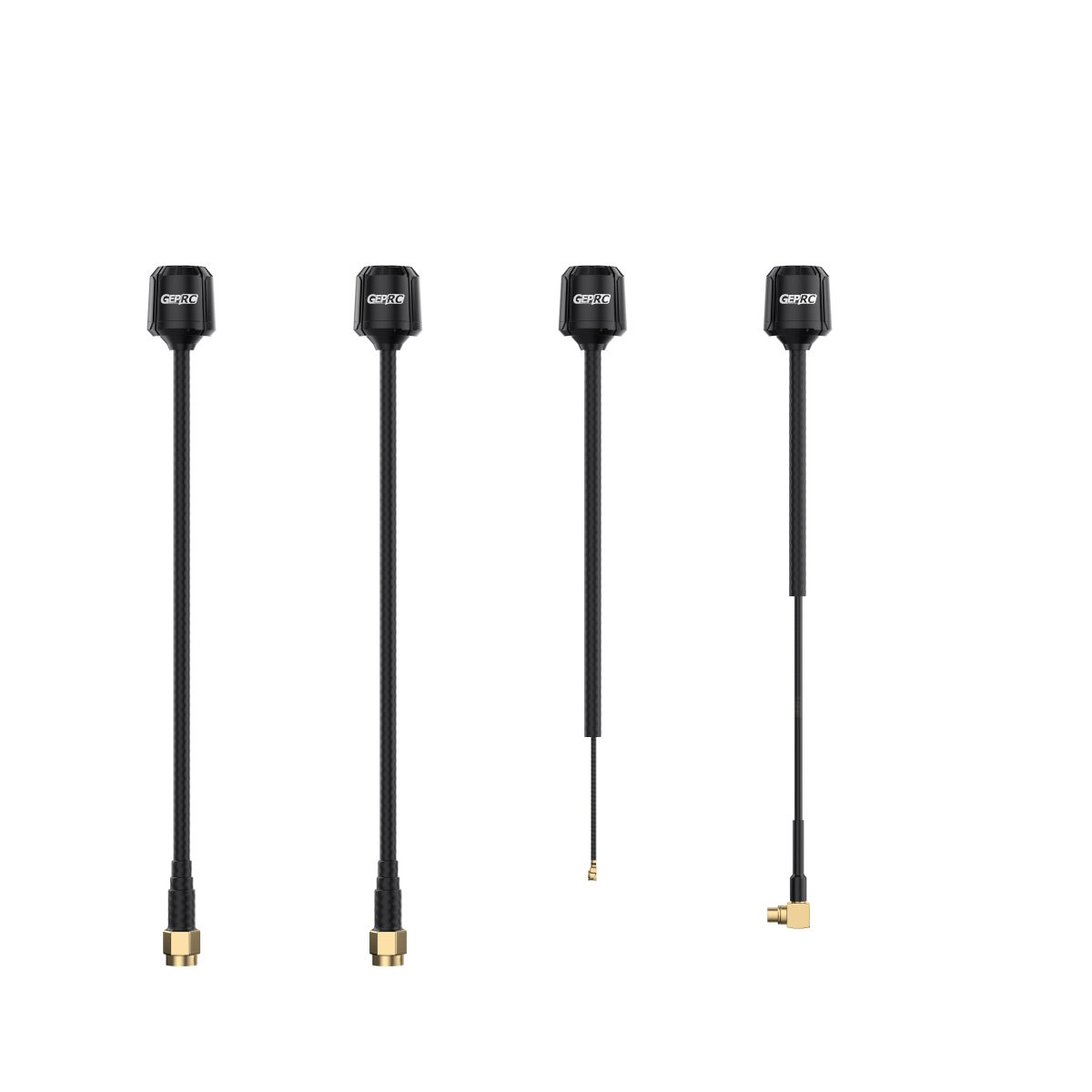

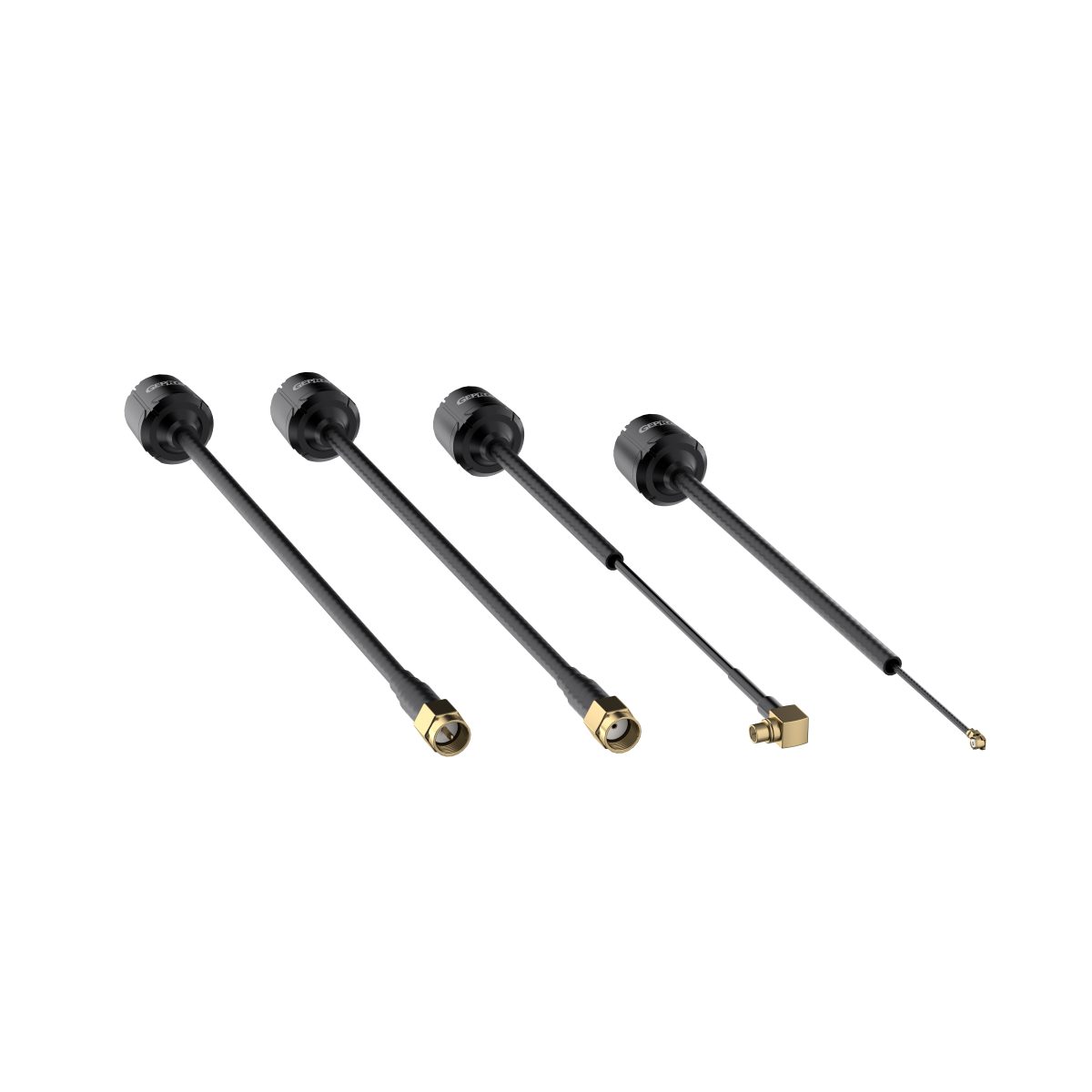

- Connector Types: SMA / RP-SMA / AngleMMCX / UFL
Includes
1*Momoda 5.8G antenna
| Weight | 0.01 kg |
|---|---|
| Dimensions | 12 × 1.6 × 1.6 cm |
