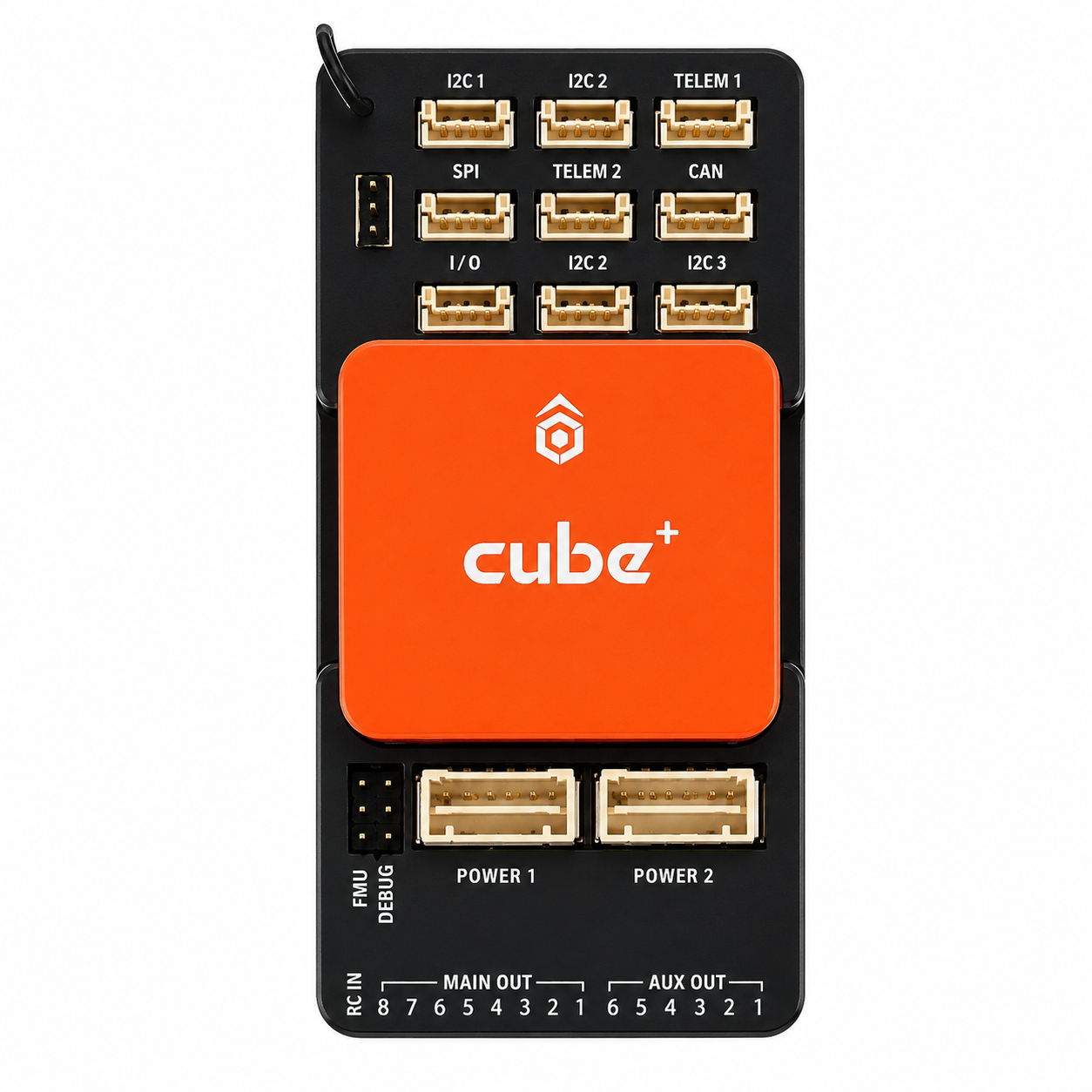

Cube Orange+ Standard Set ADS-B

The Cube Orange+ Standard Set ADS-B comes with an H7 processor, features a 1,090 MHz ADS-B receiver from Avionic, automatically avoids aircraft, and Is integrated into the new ADS-B carrier board. Through the parameter setting, the autopilot can optionally set up the cube to allow the vehicle to automatically avoid an aircraft that is detected in an exclusion zone set by the pilot. The Cube Orange

1. Cube Orange targets education, amateur drone lovers, and professionals with cost-effective flight control hardware.
2. Includes new generation of more powerful H7 processor, with stronger performance, faster processing, and increased security with built-in,
3. triple-redundant sensors, temperature control shock absorption IMU.
4. With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multi-rotor vehicle and turn it into a more professional UAV platform.

ADS-B Carrier Board

1. A standard carrier board with an integrated 1090MHz ADS-B receiver allows the software to receive information about the location of manned aircraft in the area.
2. Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner.
3. Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that is within an exclusion zone set by you

Features:

1. Built-in IMU Heating system, allowing flights at extreme temperatures (below freezing)
2. Robust DF17 Interface connectors give enhanced drop and shock resistance
3. Air-frames: VTOL, Plane, Multi-copter, Traditional Heli, Rover, Boat, Sub, General Robotics.

Specifications:

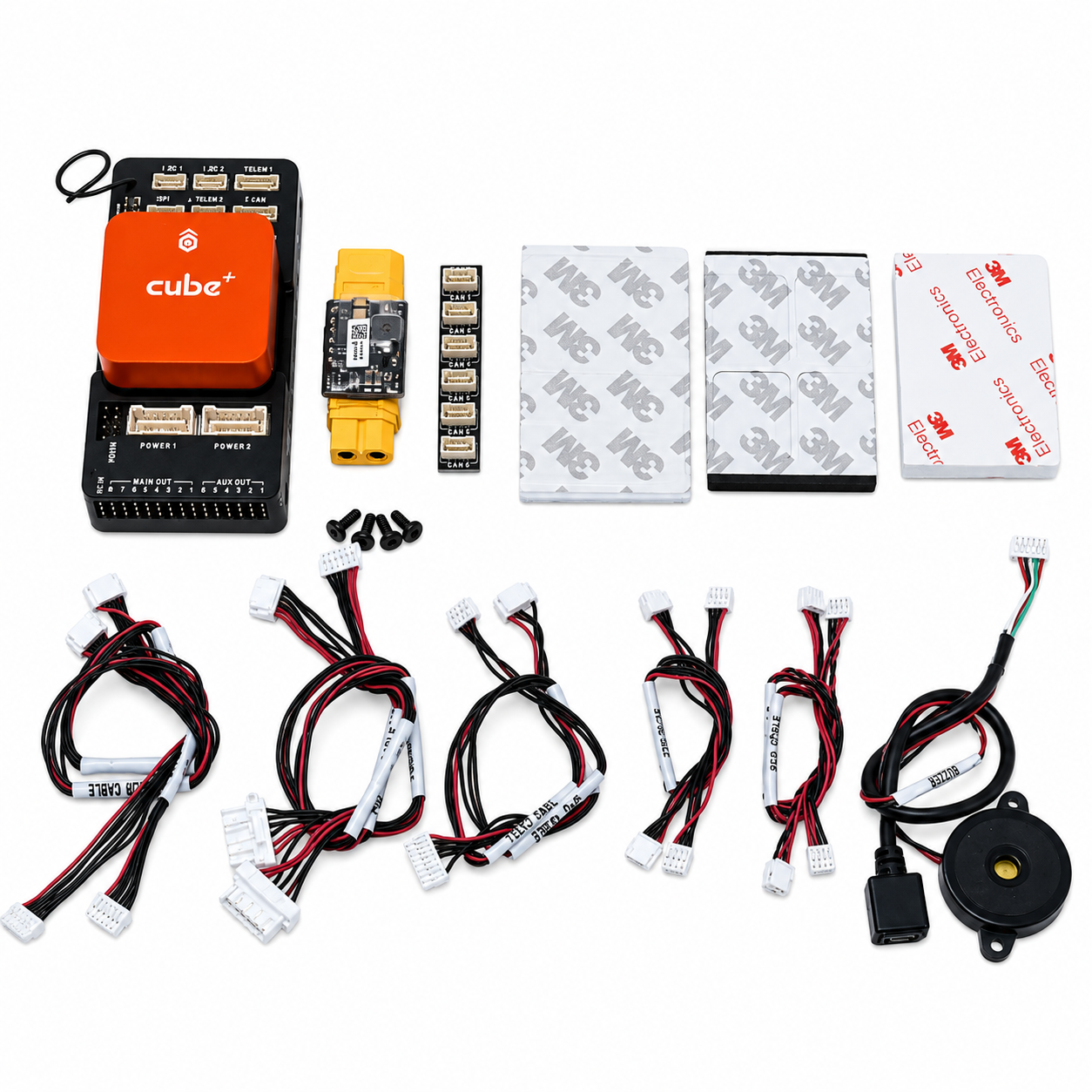

Packages Includes:

1 x The Cube Orange Plus with ADSB Carrier Board Kit Included
1x Cube Orange+
1x ADSB Carrier Board
1x Power Brick Mini
1x I2C Board
1x Buzzer Cable
2x CAN Cable
1x Power Brick Mini Cable
1x GPS1 Cable
1x Micro USB Cable
2x I2C Cable
4x Mounting Screw
3x 3M Large Sticker
2x 3M Medium Sticker
4x 3M Small Sticker
