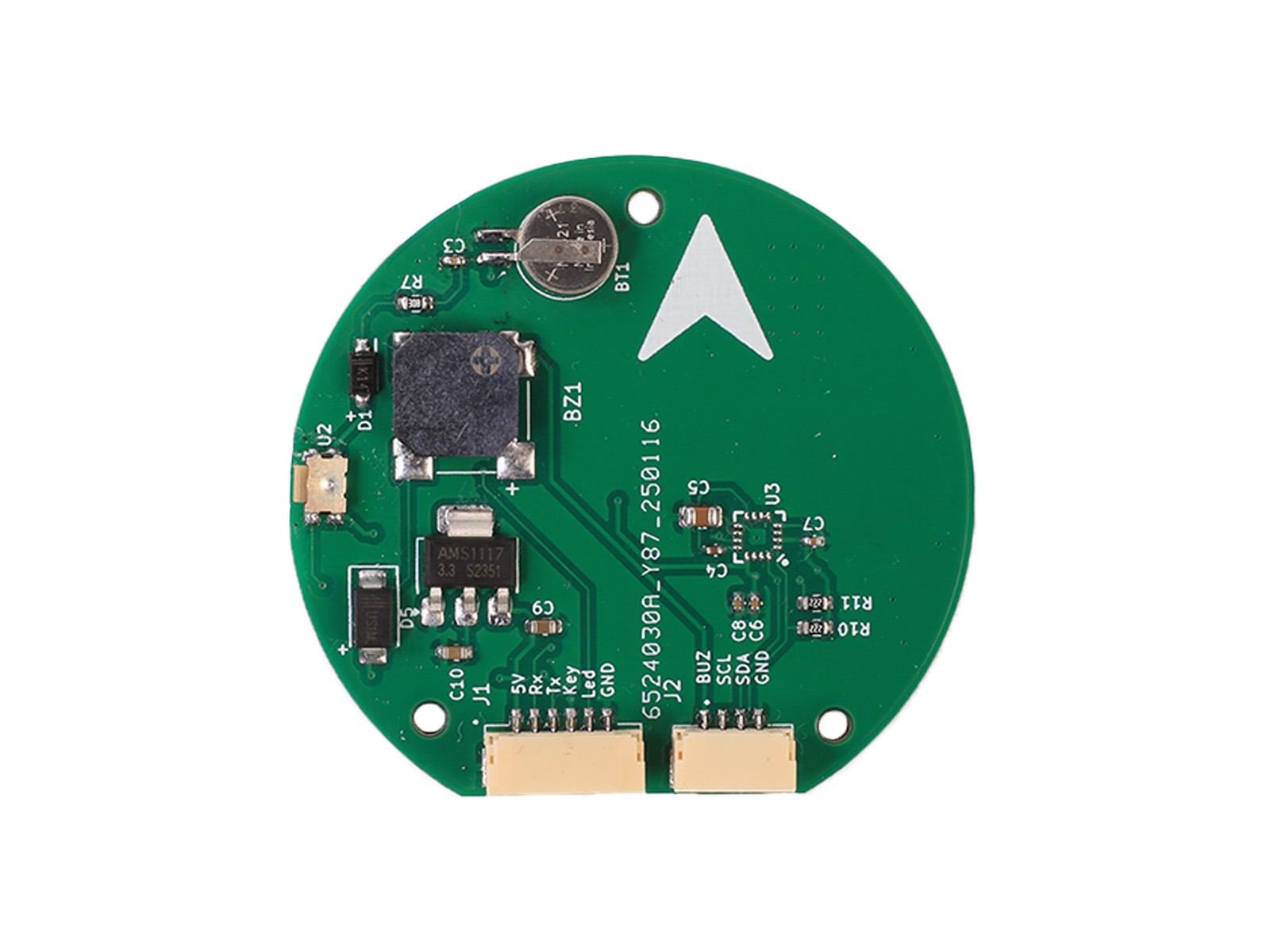

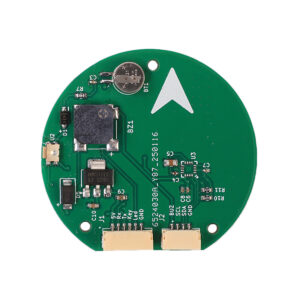

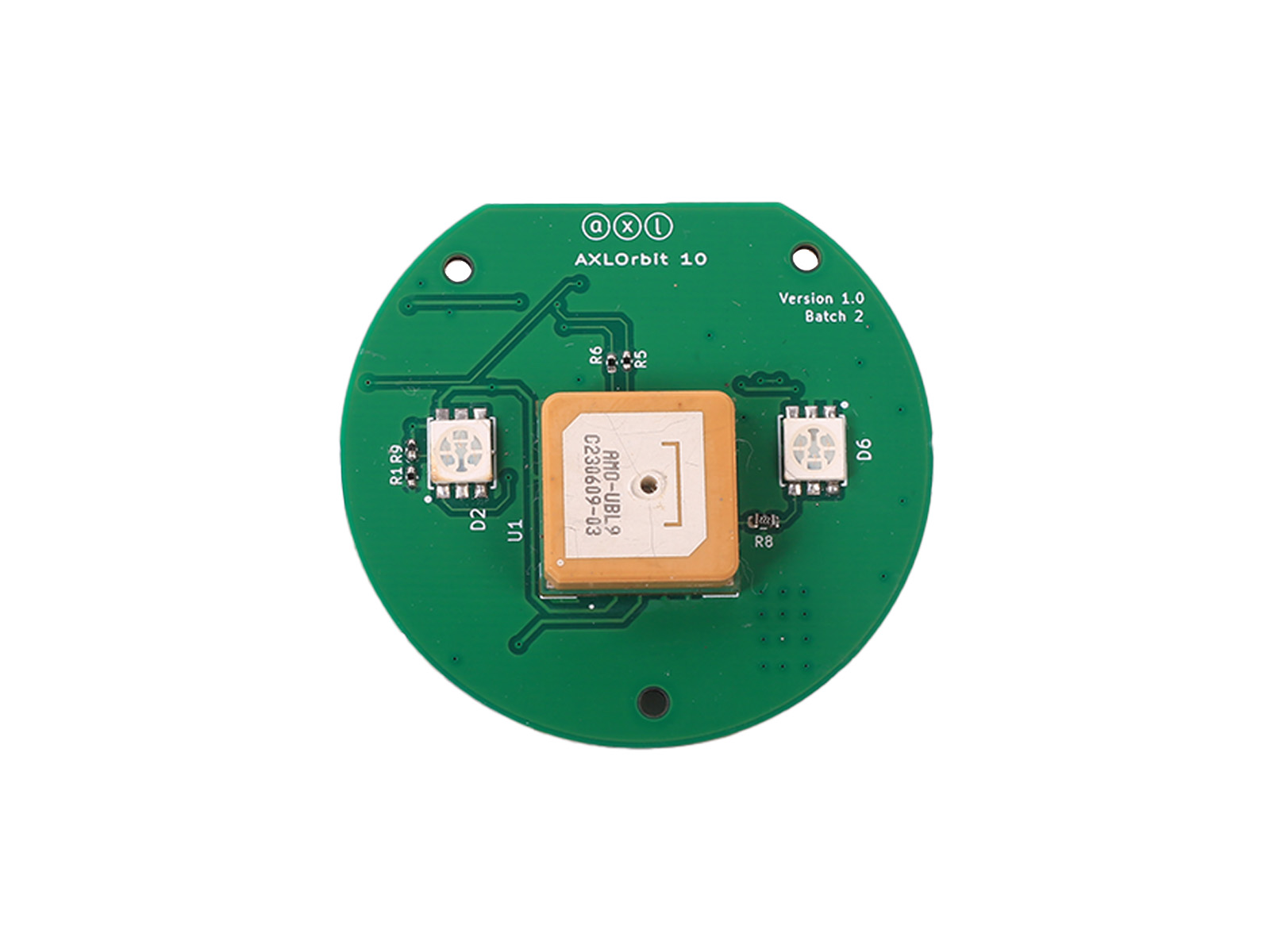

Name: axl Orbit-N
SKU: GPS-AXL-1
Availability: OutOfStock

The axl Orbit-N GPS provides ultra-precise positioning with up to 1.5-meter accuracy, maximum position availability through 4 concurrent GNSS receptions, advanced spoofing and jamming detection, and exceptional heading accuracy of 0.3 degrees.

Designed For

Seamless integration with drones & surveillance systems
Reliable performance in dynamic environments
Made in India with cutting-edge technology

Features

Enhanced 1.5m Accuracy

Accurate Orientation & Navigation

Optimal Design and Efficiency

QMC5883L Compass

Versatile Connectors & Firmware Compatibility

Rechargeable Backup Battery: Ensures Uninterrupted Operation

Dimensions

Diameter 18.7 mm

Specifications – Click here to download Brochure

GNSS System

GPS, GLONASS, Galileo, and BeiDou
Satellite Bands

GPS L1 C/A GLONASS L1OF BeiDou B1C
Galileo E1B/C
Navigation Update Rate

Max 5Hz (Four GNSS)
Horizontal Accuracy

1.5 m
Heading Accuracy

0.3deg
Maximum Altitude

80,000m
Sensitivity

Tracking and nav. -165 dBm

Reacquisition -158 dBm Col
Compass

QMC5883L
Current consumption

10 mA
Input Voltage

4.7-5.2V
Port Type

JST-GH-06 & JST GH 04
Operating Temperature

-40 to 85 oC

Weight	0.1 kg
Dimensions	15 × 15 × 1 cm
