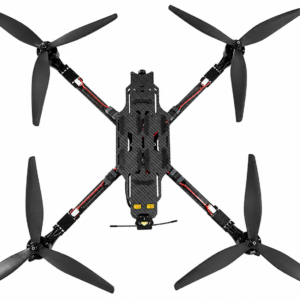

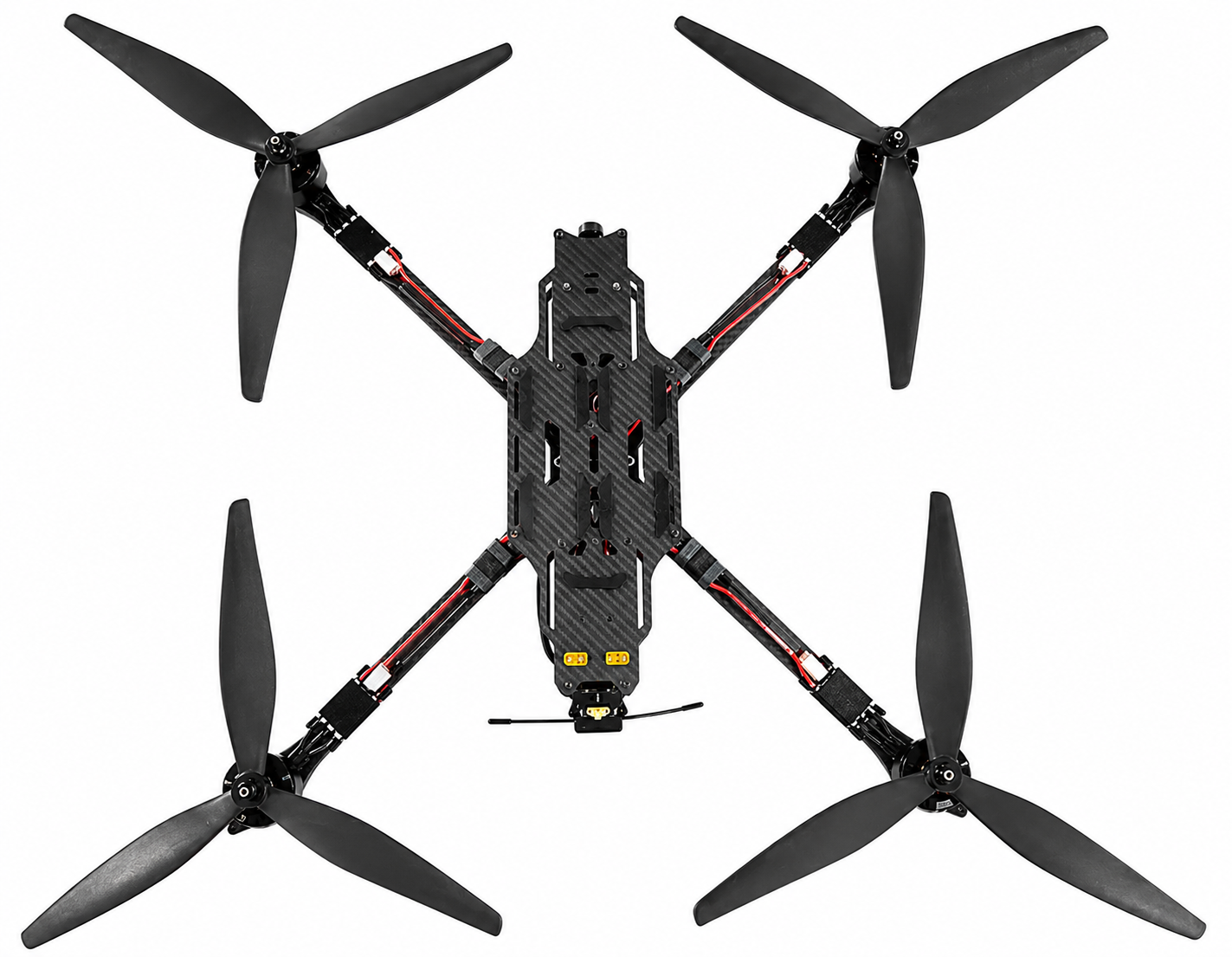

Shadow 15-Inch Carbon Fiber FPV Drone Frame

The  Shadow 15-Inch Carbon Fiber FPV Drone Frame is a professional heavy-duty UAV frame designed for long-range flight, high payload capacity, and industrial FPV applications,

Constructed from high-strength T300 carbon fiber, the Shadow 15 adopts a true X configuration with a 647mm wheelbase, delivering excellent structural balance, vibration control, and flight stability even under extreme payload conditions. The frame is optimized for 8KG-class payloads and supports 10km+ long-distance transmission systems, making it ideal for long-range FPV, industrial inspection, and customized UAV platforms.

A key highlight of the Shadow 15 is its quick-release, demountable arm design, allowing arms and motors to be detached together. This significantly reduces packing volume, improves shipping safety, and lowers international logistics costs—an essential advantage for global B2B customers.

Features

1. Industrial-Grade T300 Carbon Fiber Construction

The Shadow 15-Inch Carbon Fiber FPV Drone Frame is manufactured using premium T300 carbon fiber plates, processed through high-precision CNC cutting. This ensures exceptional stiffness, impact resistance, and long-term durability, even in harsh operational environments.

2. True X Frame Geometry for Heavy Payload

The true X layout provides balanced thrust distribution and improved control authority, especially critical for large motors, 15-inch propellers, and high-voltage power systems.

3. Quick-Release Arm Design

The detachable arm structure allows the arms and motors to be removed as a single module. Installation requires only 8 screws, enabling fast assembly and maintenance while reducing shipping size and cost.

4. Optimized for Long-Range FPV Systems

Designed to support high-power VTX modules, large antennas, and anti-interference transmission equipment, the frame is suitable for analog FPV, digital systems, and customized communication links.

5. Excellent Component Compatibility

Multiple standardized mounting patterns ensure compatibility with mainstream flight controllers, VTX boards, cameras, ESC stacks, and power distribution systems.

6. Spacious Internal Layout

With a 25mm internal height, the frame easily accommodates industrial-grade electronics, large ESCs, encrypted video transmitters, and custom payload modules.

Specifications

Model: Shadow 15 / X15
Frame Type: True X
Wheelbase: 647mm
Overall Size: 517mm × 517mm
Weight: Approx. 915g (excluding 3D printed parts)
Carbon Fiber Material: T300

Carbon Plate Thickness

• Top Plate: 2.0mm
• Middle Plate: 4.0mm
• Bottom Plate: 4.0mm
• Side Plate: 2.0mm
• Arm Thickness: 10mm

Mounting Hole Patterns

• Flight Controller: 30.5 × 30.5mm
• VTX: 20 × 20mm / 25 × 25mm / 30.5 × 30.5mm
• Motor Mount: 30mm
• Camera Mount: 20mm

Internal Space Height: 25mm
