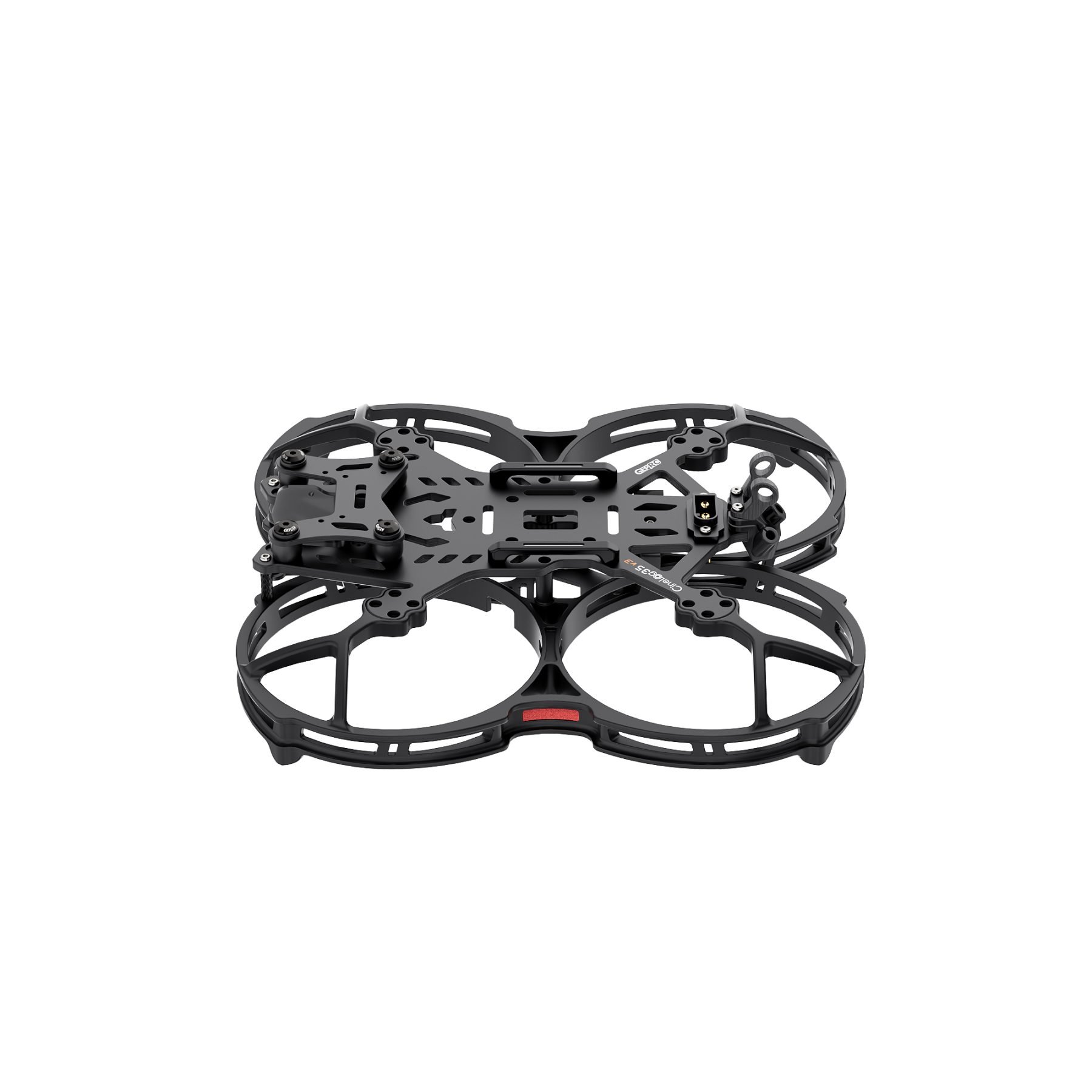

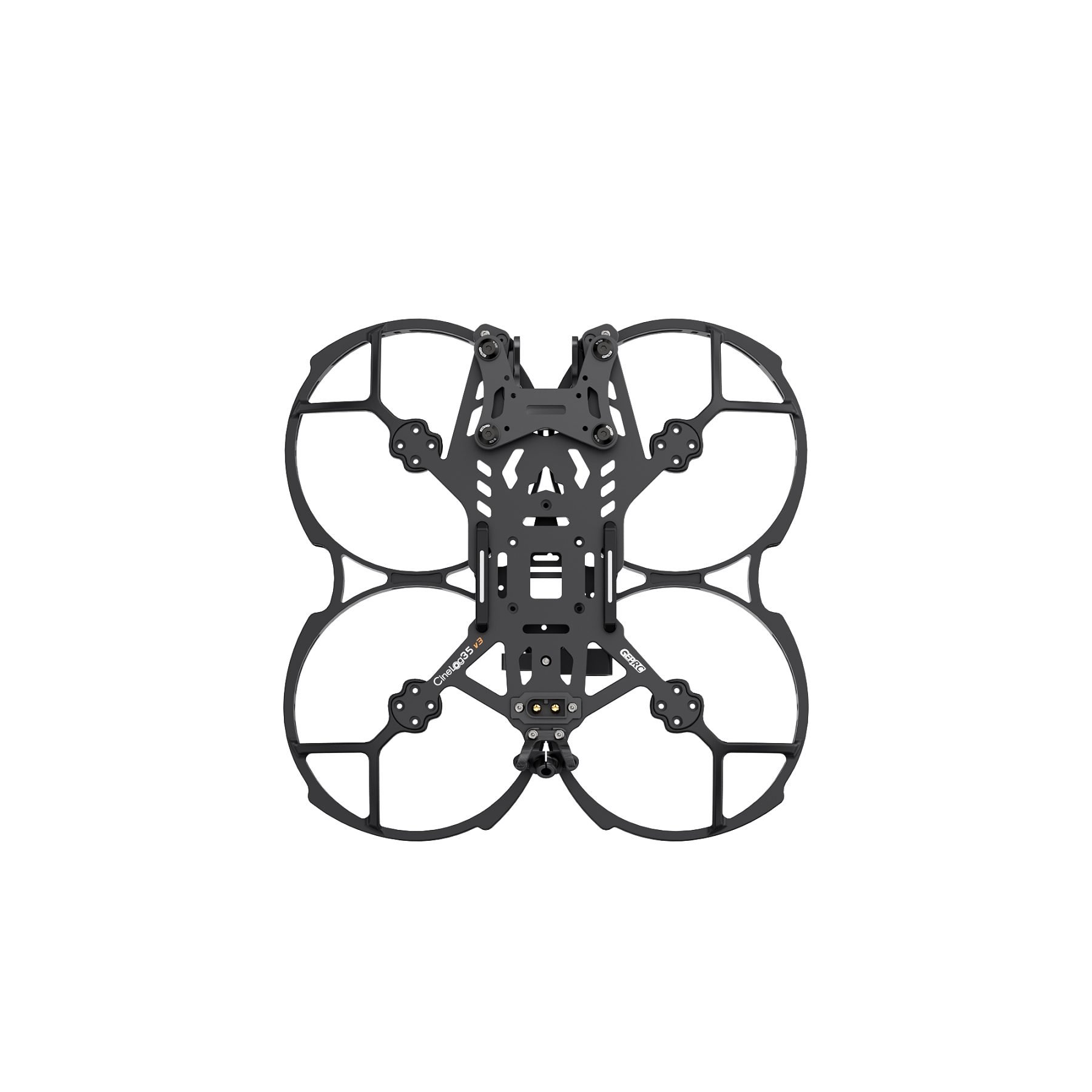

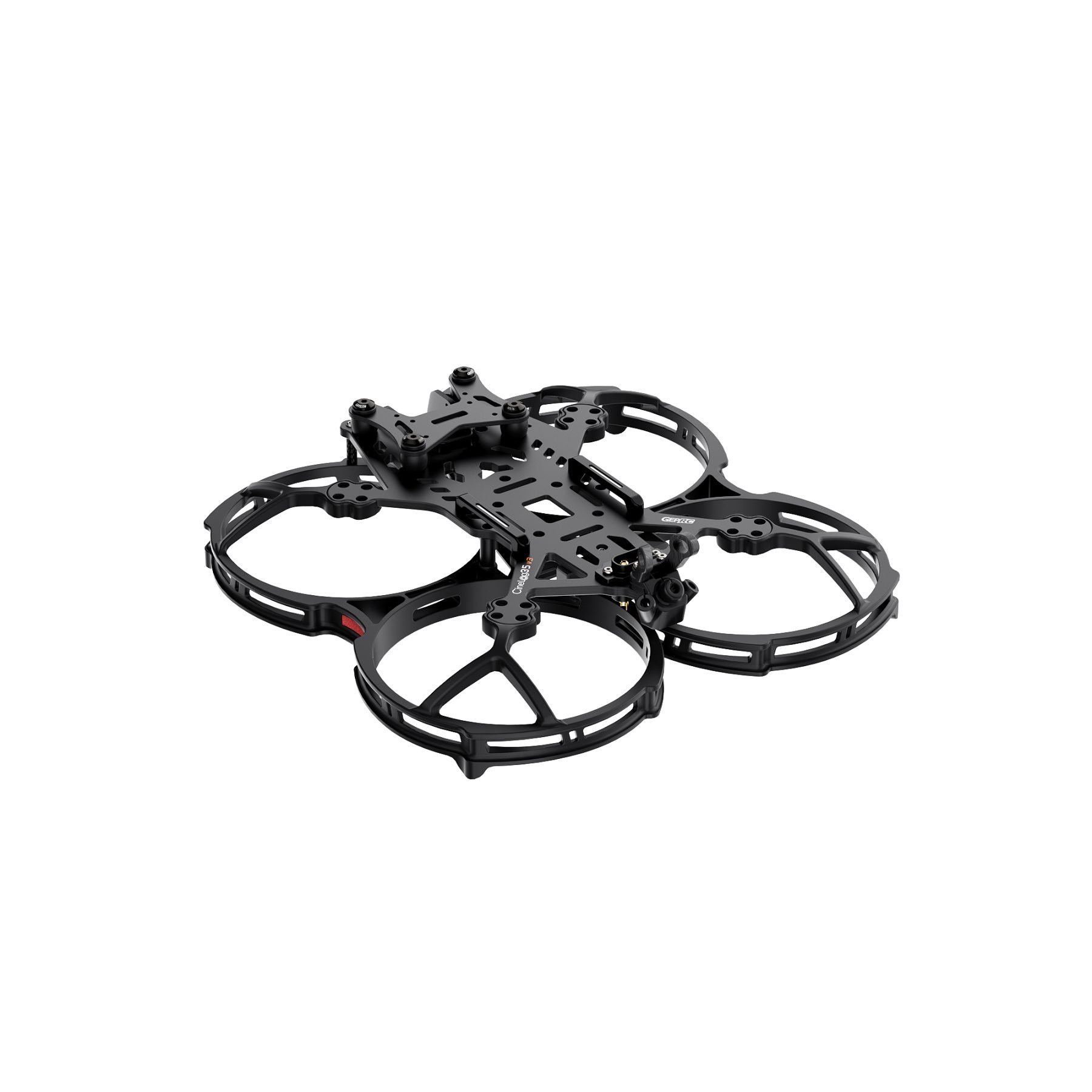

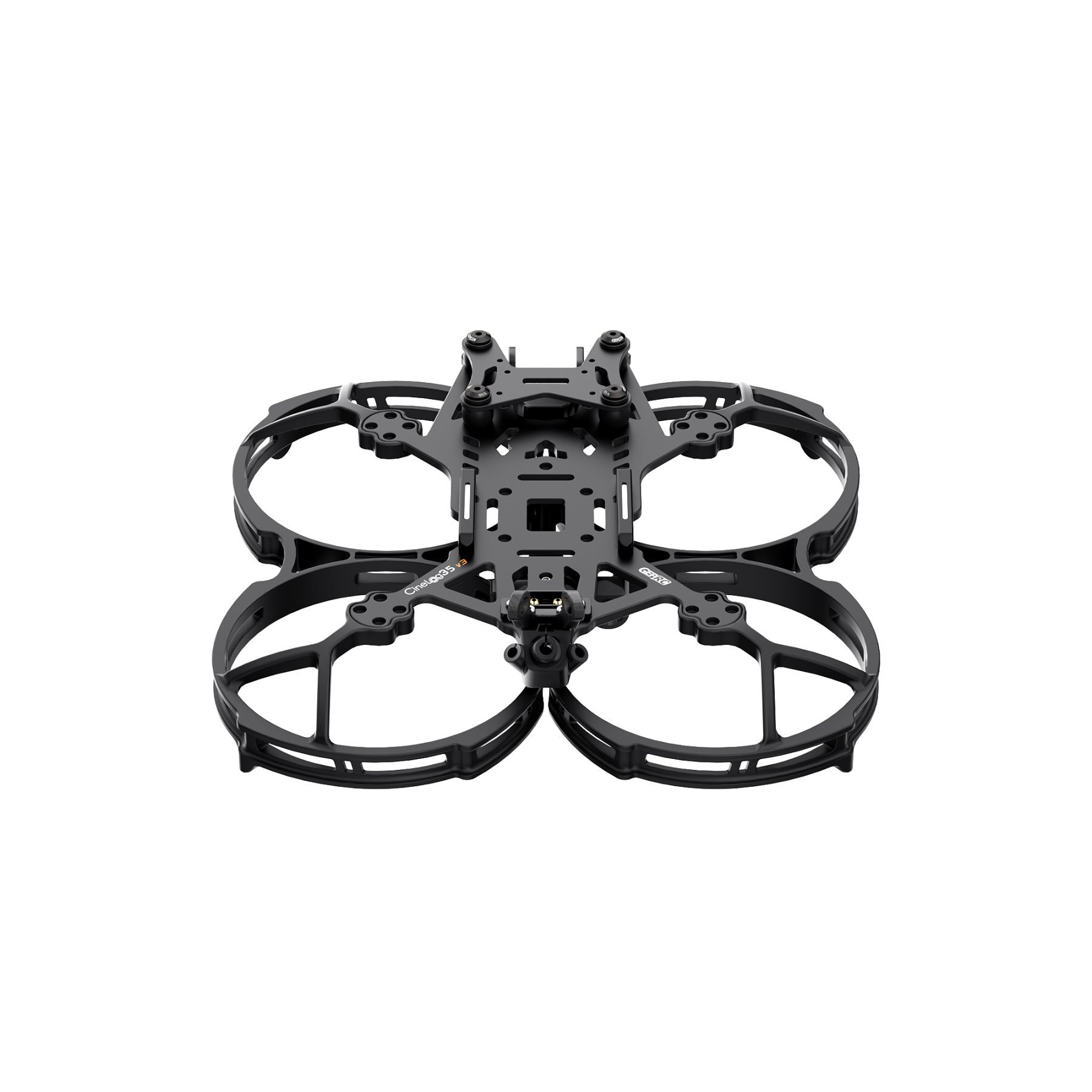

GEP-CL35 V3 Frame

The Cinelog35 Series has been upgraded with the V3 frame kit to fully support the O4 Air Unit Pro HD digital transmission system.

The GEP-CL35 V3 frame has been specifically re-molded to fit the O4 Pro module, allowing users to easily access the Type-C port for data transfer and conveniently insert or remove the memory card.

With newly tuned damping balls, featuring improved damping ratios, the camera’s jello effect is effectively minimized for clearer and more stable footage.

Features

1. Compatible with the O4 Air Unit Pro HD digital transmission system.
2. Bottom-mounted camera design connected via tuned damping balls for effective vibration isolation.
3. Updated molds for the O4 Air Unit Pro module, allowing easy Type-C access for data transfer and quick memory card insertion/removal.
4. Designed with a GPS mount compatible with 22mm × 22mm × 8.2mm GPS units.
5. Main carbon plate finished with a matte black coating for a refined and premium appearance.

Specification

• Product Name: GEP-CL35 V3 Frame
• Wheelbase: 142mm
• Gimbal Plate Thickness: 2mm
• Main Plate Thickness: 3.5mm
• Bottom Plate Thickness: 1.5mm
• FC Mounting: 25.5mm × 25.5mm
• VTX Mounting: 20mm × 20mm / 25.5mm × 25.5mm
• Motor Mounting: 12mm × 12mm
• Camera Mounting Width: 20mm
• Duct Inner Diameter: 95mm
• Prop Size: 3.5 inch
• Frame Weight: 126.8g

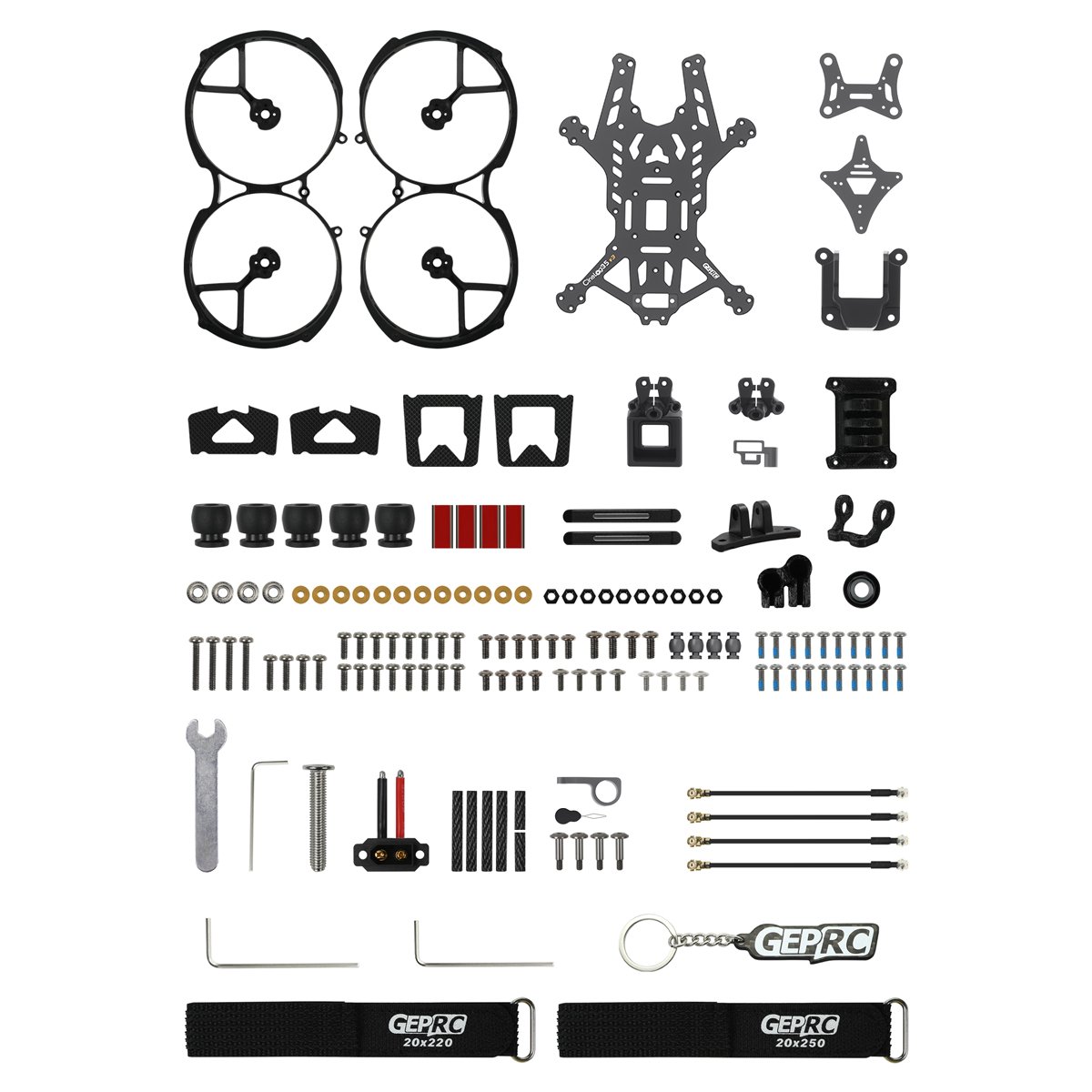

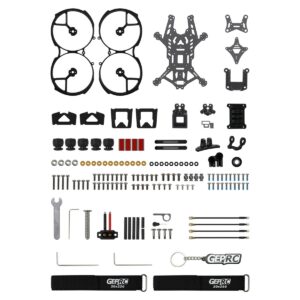

Includes

Main Carbon Plate × 1

Gimbal Carbon Plate × 1

Bottom Carbon Plate × 1

Prop Guard × 1 (pair)

Camera Mount × 1

Receiver Mount × 1

T-Antenna Mount × 1

Capacitor Mount × 1

Power Connector Mount × 1

VTX Antenna Mount × 1

GPS Mount × 1

Action Camera Base Mount × 1

40mm UFL Antenna Extension Cables × 4

Battery Anti-Slip Pads × 2 (sets)

Battery Strap Aluminum Mounts × 2

XT60EW-M Plug × 1

20×220mm Battery Strap × 1

20×250mm Battery Strap × 1

Small Accessories

M2*3.3*25 Textured Aluminum Standoffs × 4

Motor Wire Management Tubes × 4

Small Action Camera Base × 1

Camera Damping Balls × 6

Gimbal Damping Balls × 4

Damping Ball Installation Tool × 1

3.0mm L-Shaped Hex Wrench × 1

2.0mm L-Shaped Hex Wrench × 1

1.0mm L-Shaped Hex Wrench × 1

M8 Wrench × 1

Keychain × 1

Screw Pack

M2*7 Pan Head Screws × 20

M2*8 Pan Head Screws × 16

M2*6 Pan Head Screws × 6

M2*5 Pan Head Screws × 4

M2.5*6 Pan Head Screws × 4

M2 Hex Nuts × 10

M3 Press-Fit Nuts × 4

M2 Press-Fit Nuts × 12
