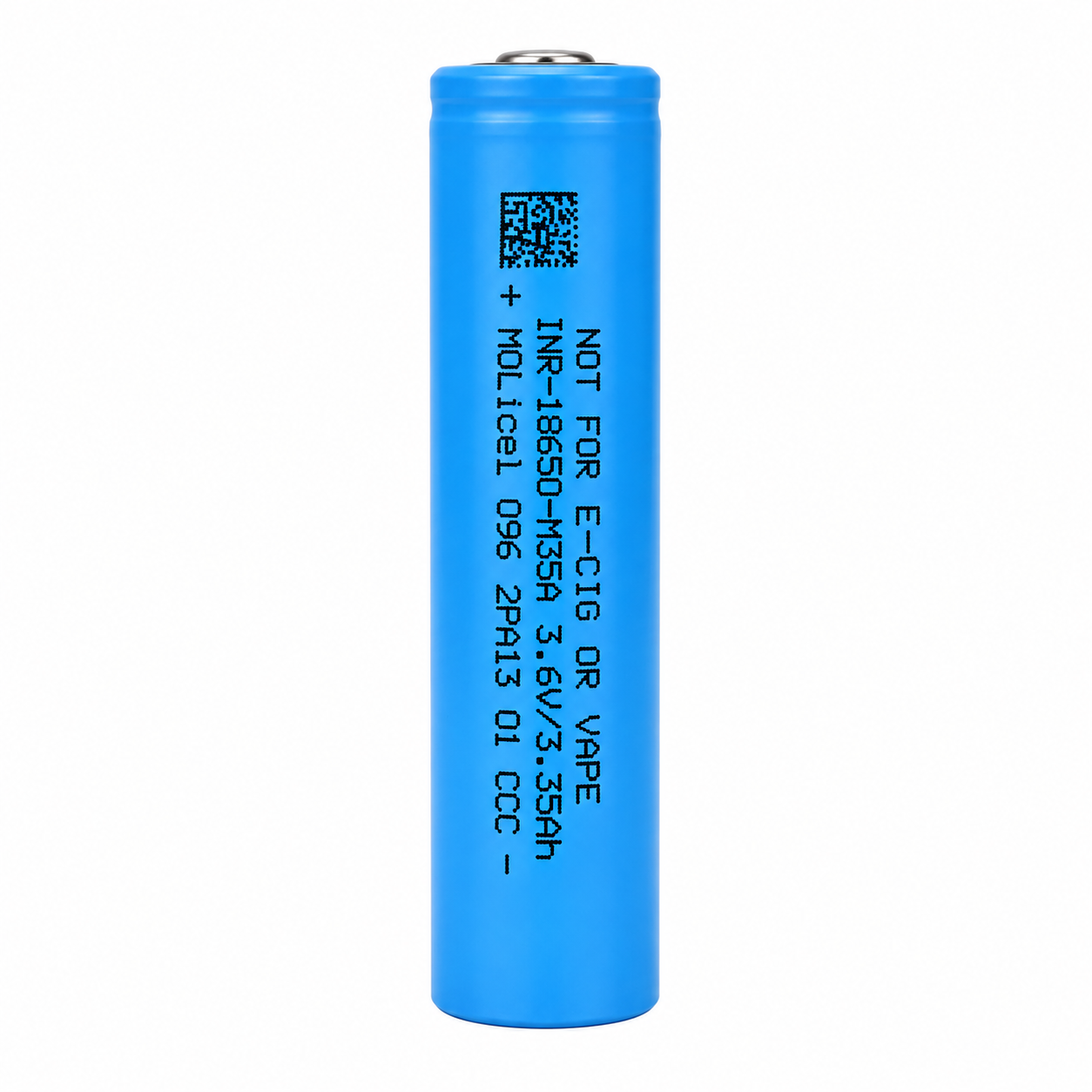

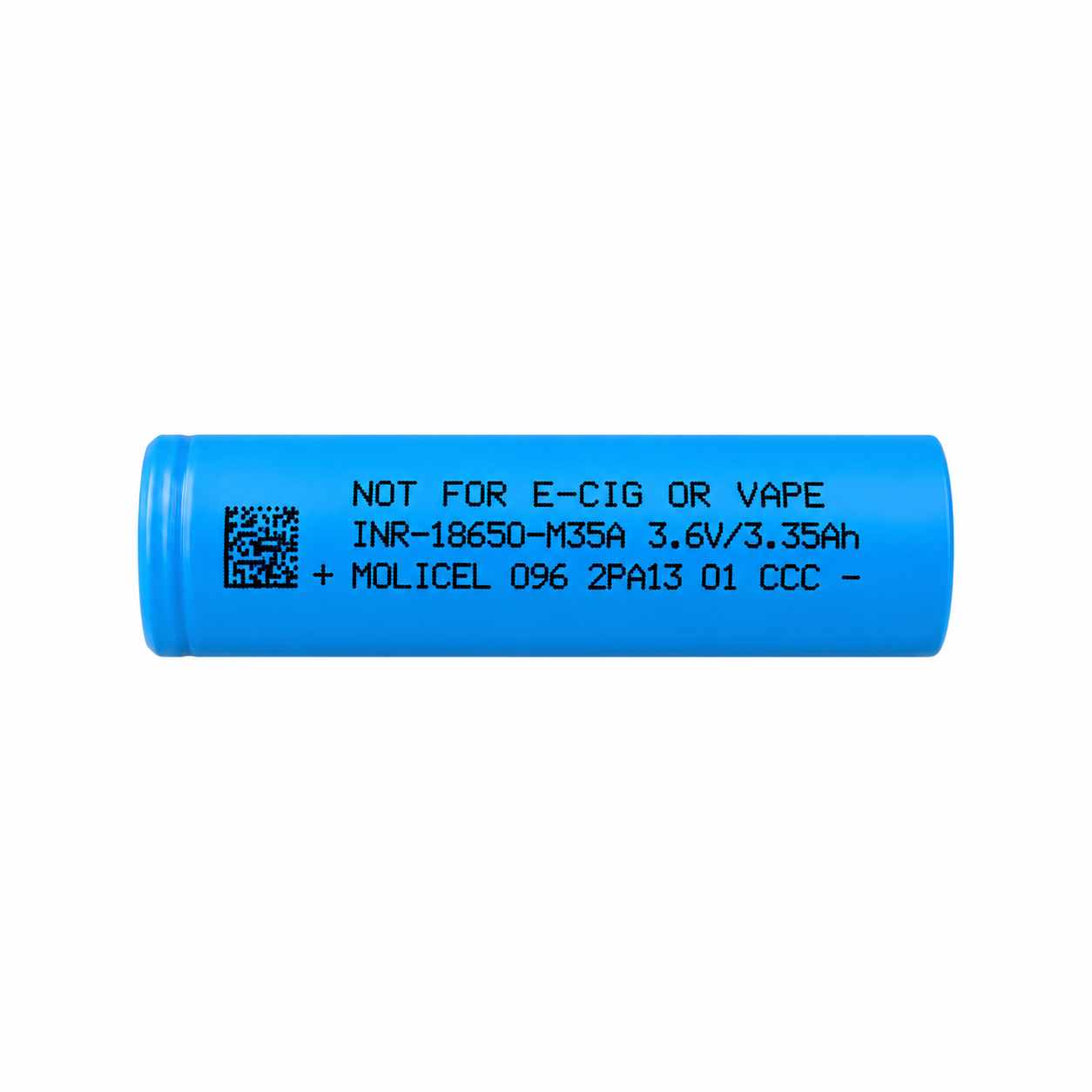

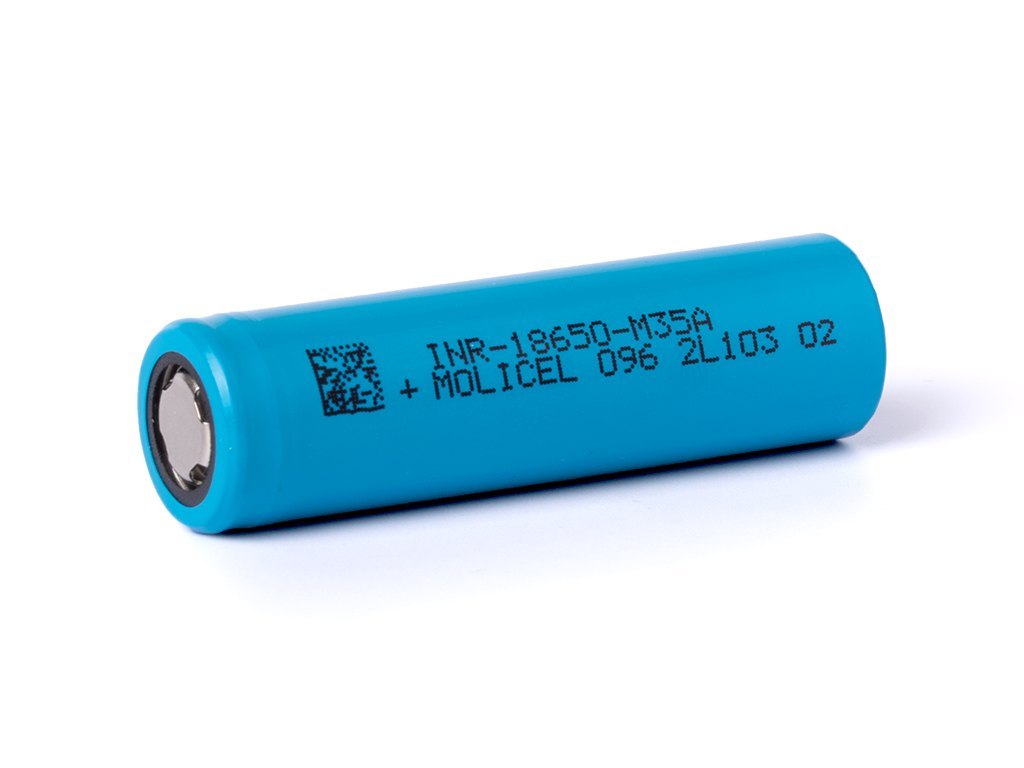

Molicel INR-18650-M35A 3.6V 3450mAh Li-ion Battery | High-Drain 18650 Cell

MOLICEL INR-18650-M35A Lithium-Ion Cell

Name: MOLICEL INR-18650-M35A Lithium-Ion Cell
SKU: BAT-MCL-3
Availability: OutOfStock

Original price was: ₹500.00.Current price is: ₹417.00. including GST

Out of stock

SKU: BAT-MCL-3 Categories: Battery & Chargers, Li - ion Battery Brand: MOLICEL

model No – INR-18650-M35A
HSN Code – 85076000
Click here to download – Datasheet ⬇️

CELL CHARACTERISTICS

Capacity
- Typical = 3500 mAh 12.5 Wh
- Minimum = 3350 mAh 11.9 Wh
Cell Voltage
- Nominal = 3.6 V
- Charge = 4.2 V
- Discharge = 2.5 V
Continuous Charge Current
- Standard = 1.7 A
- Maximum = 1.7 A
Charge Time = Standard 2.5 hr
Continuous Discharge Current = Maximum 10 A
Ambient Temperature
- Charge = 0°C to 60°C
- Discharge = -40°C to 60°C
Energy Density
- Volumetric = 700 Wh/l
- Gravimetric = 250 Wh/kg

Tech Summary

Discover the superior performance of the MOLICEL INR-18650-M35A 3.6V 3450mAh . With a typical capacity of 3500 mAh (12.5 Wh) and a nominal voltage of 3.6 V, this cell is designed for reliability and efficiency. It offers a maximum continuous discharge current of 10 A, making it ideal for high-demand applications, and features a standard charge time of just 2.5 hours. Operating efficiently within an ambient temperature range from -40°C to 60°C, the MOLICEL INR-18650-M35A ensures optimal performance under diverse conditions.
