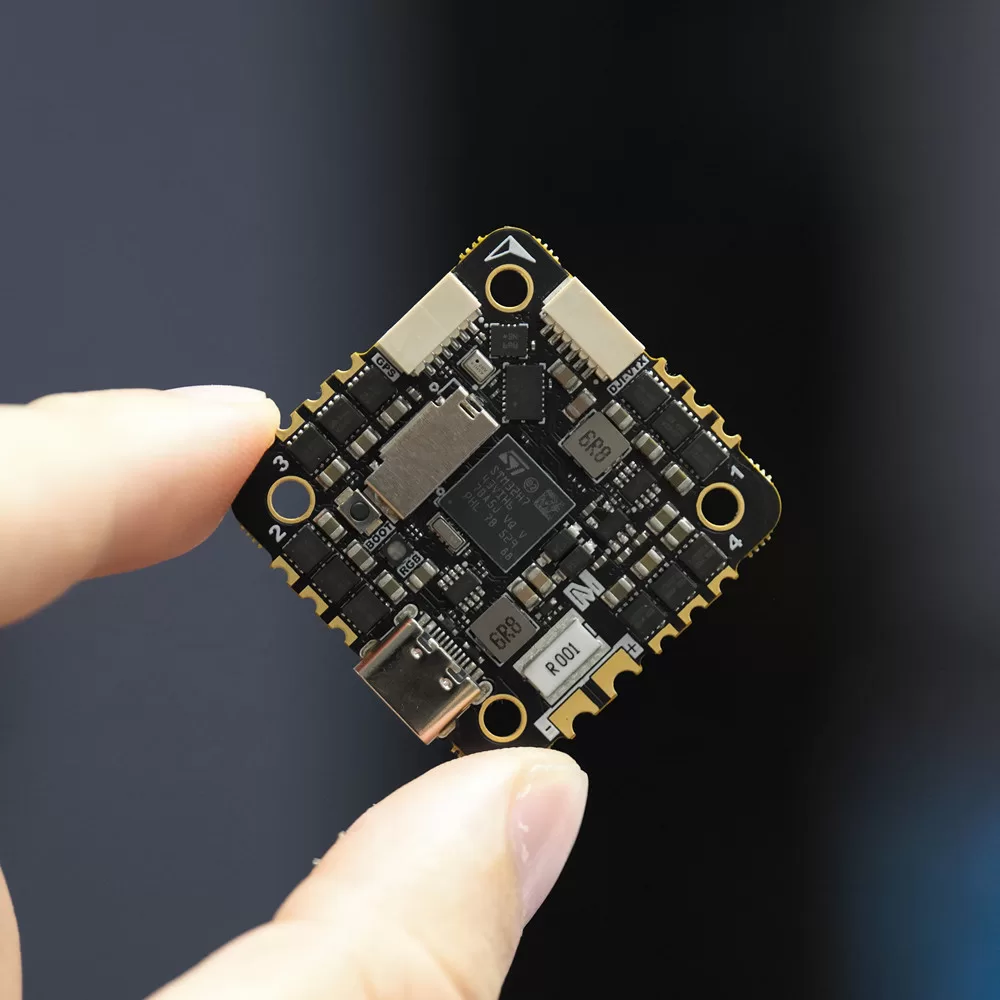

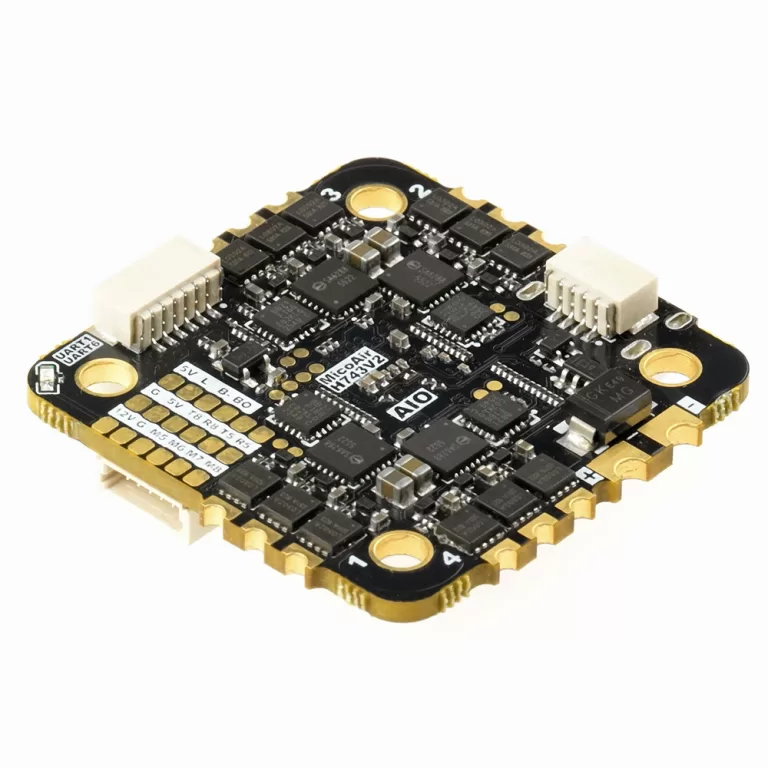

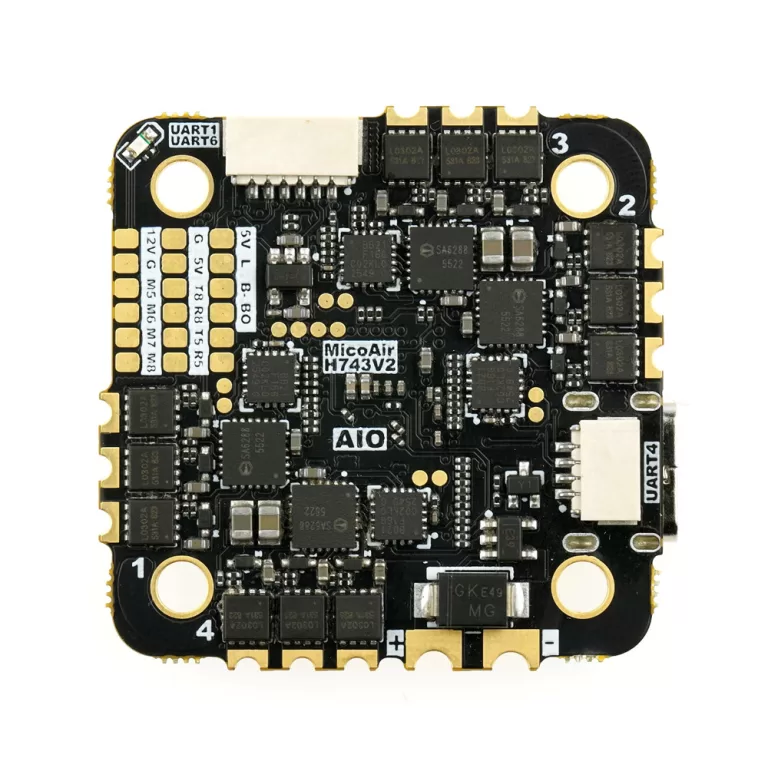

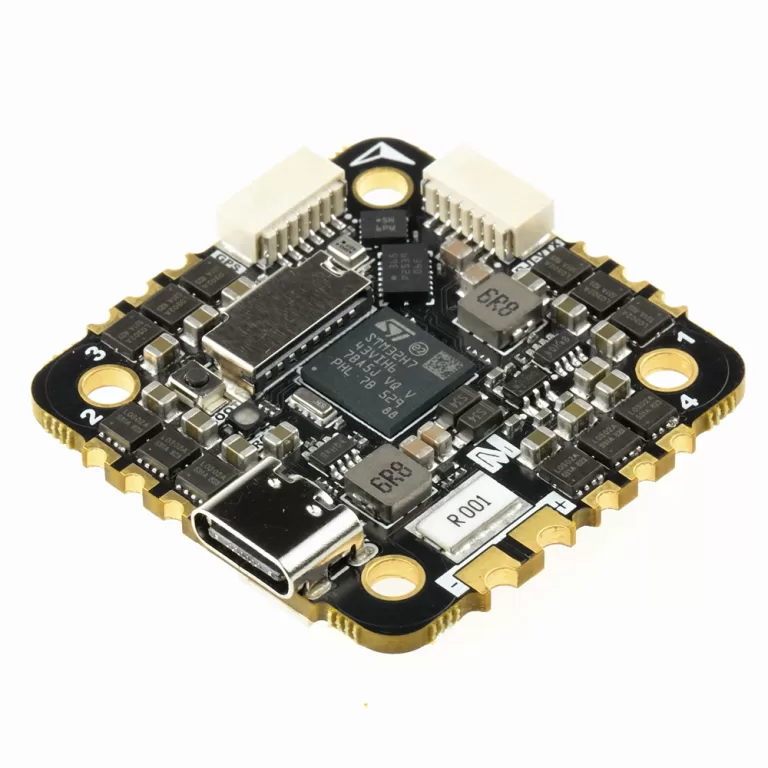

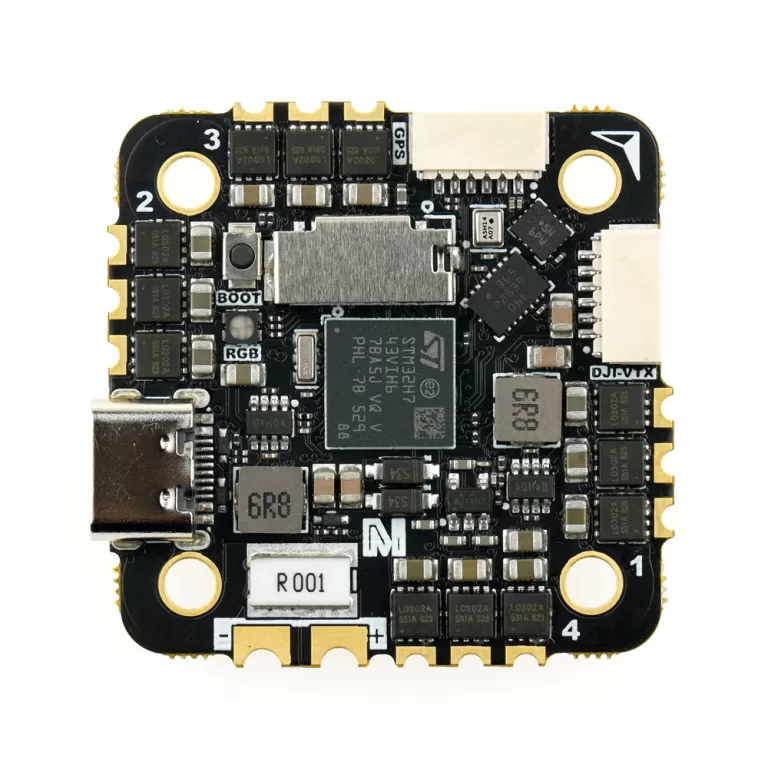

MicoAir743v2-AIO-35A

Name: MicoAir743v2-AIO-35A
SKU: MICA-35A
Availability: InStock

Original price was: ₹7,999.00.Current price is: ₹6,999.00. including GST

Only 1 left in stock

This item: MicoAir743v2-AIO-35A

Only 1 left in stock

including GST

XBF SpeedyBee F405 V4 BLS 60A 30x30 Stack (Non Branded)

1 × XBF SpeedyBee F405 V4 BLS 60A 30x30 Stack (Non Branded)

In stock

including GST

Zerodrag STRIX H7 flight Controller

1 × Zerodrag STRIX H7 flight Controller

In stock

including GST

Zerodrag Boost AM32 55A 4-in-1 ESC with 12-Month Warranty – Made in India

Zerodrag Boost AM32 55A 4in1 ESC Warranty & Support Guide

1 × Zerodrag Boost AM32 55A 4-in-1 ESC with 12-Month Warranty – Made in India

In stock

including GST

MicoAir743v2 -AIO-45A

MicoAir743v2 AIO Flight Controller 45A H7 AIO FC

1 × MicoAir743v2 -AIO-45A

In stock

including GST

EMAX BLHeli 30A ESC

1 × EMAX BLHeli 30A ESC

In stock

₹1,650.00 including GST

SKU: MICA-35A Categories: AIO, Electronics Brand: Micoair

Description
Reviews (0)

MicoAir743v2-AIO-35A – Flight Controller – MicoAir Tech

Flight Controller

MCU: STM32H743VIH6, 480MHz, 2MB Flash
IMU: BMI088+BMI270
Baro: SPL06
TF Card Slot
7x UART
9x PWM
1x I2C
1x SWD
2x ADC (VBAT, Current)
1x LED Strip
1x Beeper
USB Type-C
BEC 5V 2A output (for controller, receiver, GPS, optical flow or other devices)
BEC 12V 2A output (for DJI O3/O4/O4 pro)

ESC

Firmware: Bluejay 0.19.2
PWM Freq: 48KHz
ESC Protocol: DShot300/DShot600 (support Bi-DShot)
Continuous Current: 35A * 4 (Good cooling required)
Voltage Support: 2-6S LiPo Battery

Voltage&Current Monitoring

	Ardupilot	PX4	Betaflight	INAV
Voltage Factor	21.12	21.12	211	211
Current Factor	14.14	14.14	707	707

UART Mapping (Ardupilot)

SERIAL0 -> USB
SERIAL1 -> UART1 (MAVLink2, DMA-enabled)
SERIAL2 -> UART2 (DisplayPort, DMA-enabled)
SERIAL3 -> UART3 (GPS, DMA-enabled)
SERIAL4 -> UART4 (MAVLink2, DMA-enabled)
SERIAL5 -> UART5 (DMA-enabled)
SERIAL6 -> UART6 (RCIN, DMA–enabled)
SERIAL8 -> UART8 (DMA–enabled)

UART Mapping (PX4)

ttyACM0->USB
ttyS0->TELEM1 -> UART1
ttyS1->GPS2 -> UART2
ttyS2->GPS1 -> UART3
ttyS3->TELEM2 -> UART4
ttyS4->TELEM3-> UART5
ttyS5->RC -> UART6
ttyS7->TELEM4/SERIAL4 -> UART8

RC Input (Ardupilot)

The default RC input is configured on the UART6. The SBUS pin is inverted and connected to RX6. Non SBUS, single wire serial inputs can be directly tied to RX6 if SBUS pin is left unconnected. RC could be applied instead at a different UART port such as UART2, UART4 or UART8, and set the protocol to receive RC data: SERIALn_PROTOCOL=23 and change SERIAL6 _Protocol to something other than 23.

OSD Support (Ardupilot)

The MicoAir743v2-AIO supports OSD using OSD_TYPE 5 (MSP_DISPLAYPORT).

VTX Support

The SH1.0-6P connector supports a DJI Air Unit / HD VTX connection. Protocol defaults to DisplayPort. Pin 1 of the connector is 12v so be careful not to connect this to a peripheral requiring 5v.
