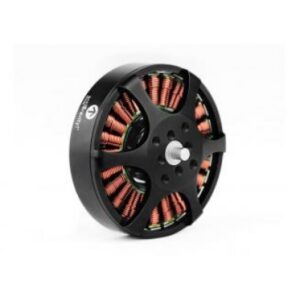

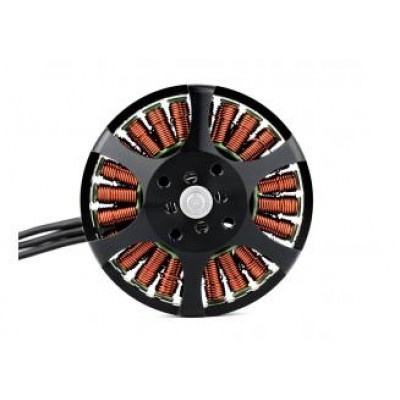

T-Motor Antigravity MN5008 400KV

Name: T-Motor Antigravity MN5008 400KV
SKU: MOT-MN-400
Availability: InStock

₹8,111.00 including GST

In stock

T-Motor Antigravity MN5008 400KV

This item: T-Motor Antigravity MN5008 400KV

In stock

₹8,111.00 including GST

XING 2806.5 Unibell 1300kv

1 × XING 2806.5 Unibell 1300kv

In stock

₹3,499.00 including GST

Emax MT2213 935KV Brushless DC Motor Black Cap (CW Motor Rotation) With Prop1045 Combo

1 × Emax MT2213 935KV Brushless DC Motor Black Cap (CW Motor Rotation) With Prop1045 Combo

In stock

₹1,247.00 including GST

XING 2207 Unibell 1855kv

1 × XING 2207 Unibell 1855kv

In stock

₹2,151.00 including GST

T Motor Antigravity MN5008 KV340

1 × T Motor Antigravity MN5008 KV340

In stock

₹7,329.00 including GST

T-Motor Velox V2207 V3 Brushless Drone Motor KV2550

1 × T-Motor Velox V2207 V3 Brushless Drone Motor KV2550

In stock

₹1,399.00 including GST

SKU: MOT-MN-400 Category: Motors Brand: T-Motor

Description
Reviews (0)

About T-MOTOR MN5008 Multirotor VTOL UAV Motor KV400

T-Motor Antigravity MN5008 KV400 is a high-performance brushless motor designed for professionals who demand the best in power, efficiency, and stability. Whether you’re capturing breathtaking aerial photography or performing detailed surveying, this ultralight motor ensures long flight times and exceptional manoeuvrability, even in challenging conditions.

Antigravity MN5008 Highlights:

• Ultra-light, high efficiency

• Devote to a long flight
• Quadcopter of 4.2kg, 60 minutes flight time
• Run smoothly, low cogging torque

” Antigravity Series” motors are ultra-light zero gravity for Multi-rotor motor.
High-Qualityimported Materials; High Slot Space Factor On Winding For Longer, Clearer And More Stable Flight.

Application Areas：

Multi-rotors, VTOL， UAVs， Heavy-duty professional drones
Aerial photography
Surveying and mapping
Rescue

Packing List Includes:

1 x T-MOTOR MN5008 KV400( kv which you choose)

1 x Hardware pack

Matching Guide:

T-MOTOR Propeller P17*5.8 / FLAME 60A 12S ESC

If you have any questions or inquiries, please contact us: onlinesales@tmotor.com

Technical Drawing

Specification

Motor Size	Φ55.6*32mm	Copper Wire	180℃ high temperature resistance: Level H
Stator	Imported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatings	Coil Insulation Test	500V
Configuration	24N28P	Centrifugal Cooling Design	YES
Shaft Diameter	IN：6mm	Rotor Dynamic Balance Standard	≤15mg
Bearing	Imported 696ZZ	Motor Dynamic Balance Standard	≤10mg
Magnet Level	150℃high temperature resistance: Level E	Packing Size	1068135mm
Lead Cable	80mm

KV	170	Rated Voltage(Lipo)	6-12S
Idle Current(22V)	0.4A	ESC Recommendation	FLAME 60A 12S
Peak Current(180s)	15A	Propeller Recommendation	P17-18″
Max. Power(180s)	720W	Motor Weight(Incl. Cable)	128g
Internal Resistance	270mΩ	Package Weight	190g

KV	340	Rated Voltage(Lipo)	6S
Idle Current(22V)	0.9A	ESC Recommendation	AIR 40A
Peak Current(180s)	35A	Propeller Recommendation	P17-18″
Max. Power(180s)	760W	Motor Weight(Incl. Cable)	135g
Internal Resistance	55mΩ	Package Weight	200g

KV	400	Rated Voltage(Lipo)	6S
Idle Current(22V)	1.1A	ESC Recommendation	AIR 40A
Peak Current(180s)	35A	Propeller Recommendation	P15-17″
Max. Power(180s)	800W	Motor Weight(Incl. Cable)	132g
Internal Resistance	50mΩ	Package Weight	200g

Test Data

Type	Propeller	Throttle	Voltage (V)	Current (A)	Power (W)	RPM	Torque (N*m)	Thrust (g)	Efficiency (g/W)	Operating Temperature (℃)
MN5008 KV170	T-MOTOR P17*5.8″ CF	40%	47.41	1.17	55	2868	0.13	682	12.34	63
		45%	47.39	1.57	74	3207	0.17	849	11.43
		50%	47.36	2.10	100	3588	0.21	1058	10.62
		55%	47.34	2.76	131	3952	0.26	1285	9.84
		60%	47.31	3.46	164	4279	0.29	1515	9.25
		65%	47.28	4.23	200	4579	0.34	1739	8.7
		70%	47.24	5.11	242	4872	0.39	1991	8.24
		75%	47.21	6.10	288	5172	0.44	2234	7.76
		80%	47.17	7.20	340	5465	0.50	2509	7.38
		90%	47.08	9.91	466	6025	0.62	3116	6.68
		100%	47.03	11.46	539	6294	0.69	3449	6.4
	T-MOTOR P18*6.1″ CF	40%	47.39	1.51	71	2807	0.19	868	12.15	89
		45%	47.37	2.05	97	3120	0.24	1096	11.28
		50%	47.34	2.74	130	3477	0.29	1343	10.34
		55%	47.30	3.63	171	3819	0.36	1633	9.52
		60%	47.27	4.57	216	4125	0.42	1926	8.93
		65%	47.23	5.63	266	4410	0.48	2229	8.39
		70%	47.19	6.73	317	4663	0.53	2519	7.94
		75%	47.15	8.01	378	4945	0.60	2821	7.47
		80%	47.10	9.48	446	5208	0.67	3156	7.07
		90%	46.99	12.85	604	5716	0.81	3807	6.3
		100%	46.94	14.63	687	5963	0.87	4100	5.97
MN5008 KV340	T-MOTOR P17*5.8″ CF	40%	23.47	2.88	68	3057	0.16	776	11.5	61
		45%	23.43	3.98	93	3443	0.19	986	10.56
		50%	23.38	5.33	125	3835	0.24	1224	9.82
		55%	23.33	6.86	160	4191	0.28	1455	9.09
		60%	23.27	8.53	199	4511	0.34	1697	8.55
		65%	23.21	10.38	241	4808	0.38	1936	8.03
		70%	23.15	12.40	287	5097	0.42	2176	7.58
		75%	23.08	14.71	339	5392	0.48	2440	7.19
		80%	23.00	17.16	395	5674	0.53	2701	6.85
		90%	22.82	23.18	529	6230	0.65	3277	6.2
		100%	22.72	26.39	600	6482	0.69	3556	5.93
	T-MOTOR P18*6.1″ CF	40%	23.44	3.76	88	2958	0.21	996	11.29	88
		45%	23.39	5.12	120	3314	0.27	1238	10.34
		50%	23.33	6.93	162	3677	0.32	1541	9.54
		55%	23.26	8.95	208	4013	0.38	1822	8.75
		60%	23.19	11.12	258	4303	0.45	2120	8.22
		65%	23.11	13.46	311	4579	0.50	2394	7.7
		70%	23.04	16.01	369	4846	0.56	2675	7.26
		75%	22.95	18.83	432	5111	0.62	2966	6.86
		80%	22.86	22.02	503	5370	0.70	3262	6.48
		90%	22.63	29.46	667	5842	0.83	3909	5.86
		100%	22.51	33.50	754	6049	0.89	4215	5.59
MN5008 KV400	T-MOTOR P15*5″ CF	40%	23.48	2.82	66	3542	0.12	672	10.16	42
		45%	23.44	3.78	89	3977	0.15	845	9.52
		50%	23.40	4.95	116	4402	0.19	1033	8.92
		55%	23.35	6.26	146	4789	0.22	1223	8.37
		60%	23.30	7.66	178	5151	0.26	1409	7.9
		65%	23.25	9.26	215	5489	0.29	1610	7.48
		70%	23.19	10.98	255	5816	0.33	1811	7.11
		75%	23.13	13.04	302	6178	0.38	2048	6.79
		80%	23.06	15.31	353	6517	0.42	2286	6.48
		90%	22.90	20.60	472	7180	0.50	2782	5.9
		100%	22.81	23.44	535	7502	0.55	3027	5.66
	T-MOTOR P16*5.4″ CF	40%	23.46	3.22	76	3429	0.15	803	10.63	58
		45%	23.41	4.46	104	3874	0.19	1021	9.78
		50%	23.36	5.93	138	4303	0.24	1259	9.1
		55%	23.31	7.54	176	4665	0.27	1492	8.5
		60%	23.25	9.28	216	5016	0.32	1722	7.98
		65%	23.19	11.19	260	5341	0.36	1956	7.53
		70%	23.13	13.16	304	5645	0.41	2185	7.18
		75%	23.05	15.66	361	5975	0.46	2458	6.81
		80%	22.96	18.53	425	6293	0.52	2750	6.47
		90%	22.77	24.84	566	6896	0.63	3323	5.87
		100%	22.67	28.16	638	7165	0.67	3591	5.63
	T-MOTOR P17*5.8″ CF	40%	23.44	3.71	87	3348	0.18	917	10.54	81
		45%	23.39	5.18	121	3777	0.23	1170	9.65
		50%	23.33	6.99	163	4192	0.28	1447	8.88
		55%	23.26	8.88	207	4540	0.33	1712	8.29
		60%	23.20	10.92	253	4867	0.38	1963	7.75
		65%	23.13	13.17	305	5175	0.44	2230	7.32
		70%	23.05	15.72	362	5478	0.49	2491	6.88
		75%	22.97	18.31	421	5770	0.55	2757	6.56
		80%	22.87	21.65	495	6062	0.61	3090	6.24
		90%	22.65	28.93	655	6610	0.73	3697	5.64
		100%	22.53	32.83	740	6860	0.78	3982	5.38
Note: Motor temperature is motor surface temperature at 100% throttle running 10mins. (Date above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)
