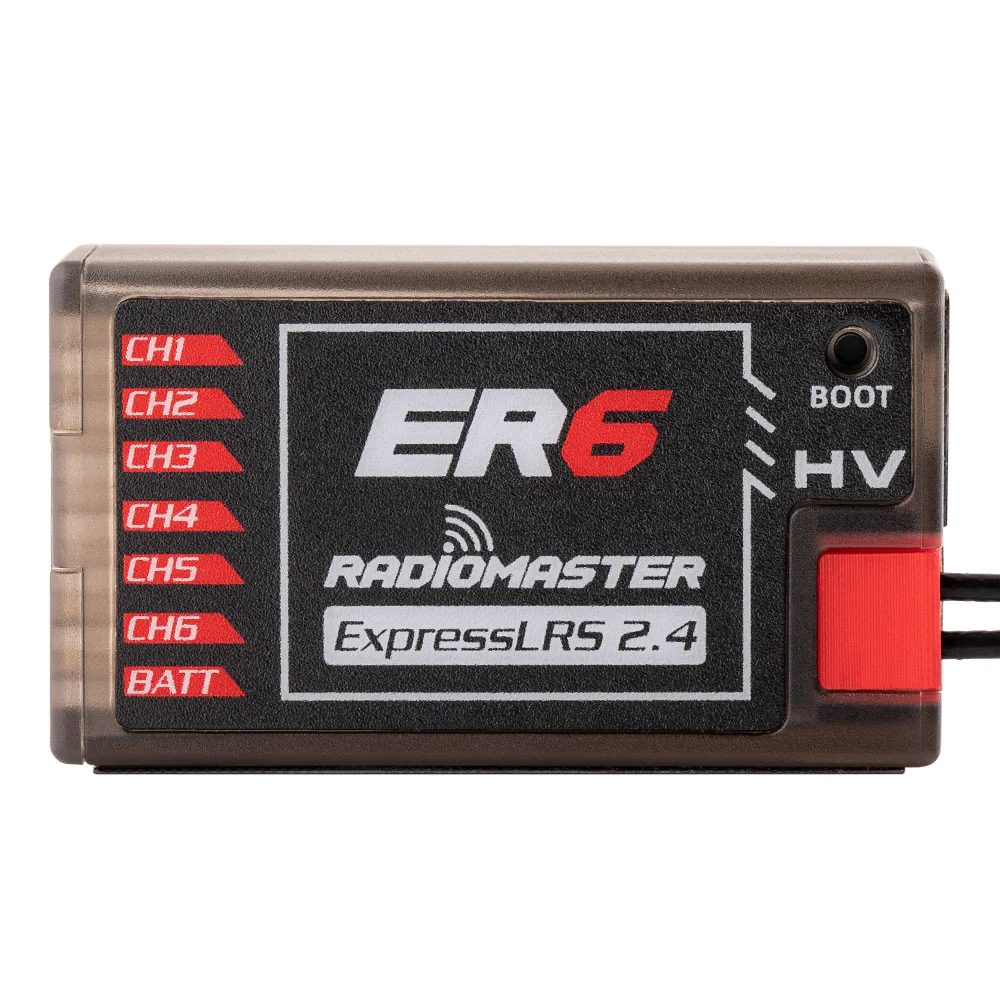

Radiomaster ER6 2.4GHz ELRS PWM Receiver

The RadioMaster ER series of PWM receivers is built on the innovative ExpressLRS protocol. It provides high performance, dependable signal, versatile configuration, and quick response time, offering a new experience for your projects and applications.

The ER6 ELRS receiver can drive up to 6 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is provided to facilitate later expansion of telemetry sensors. The ER6 features a dual-antenna with telemetry power up to 100mw. The receiver shell adopts one-piece molding process with high structural strength

Features:

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, low latency, and strong link quality
• Support 6 PWM Channels
• Optimized ground up PCB design
• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• Supports Wi-Fi updates and WEBUI configuration
• High quality 2.54 mm connector
• Standard 20 cm High Sensitivity Antenna
• Reserve 4pin CRSF input port
• The shell adopts one-piece molding process with high structural strength
• For any application
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification:

• Item: ER6 2.4GHz ELRS PWM Receiver
• Power supply: DC 4.5 – 8.4V
• Antenna type: 20cm high sensitivity dual antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 6CH PWM
• Serial Output: CRSF / Sbus
• Telemetry power: maximum 100mw (LUA Adjustable)
• Telemetry Battery voltage detection range: DC 4.0 – 35V
• Bus interface: CRSF
• Weight: 14.5 grams

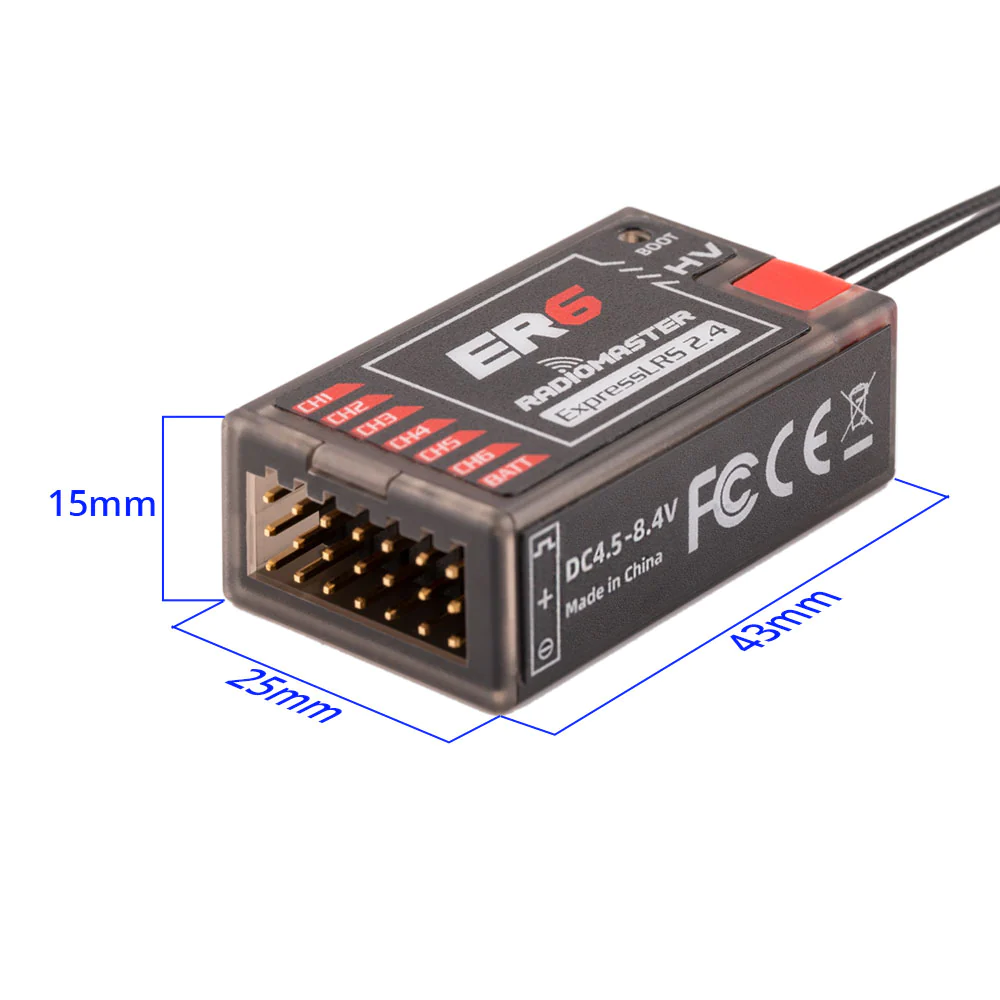

• Dimensions: 43*25*15mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: ER6 2.4GHz Diversity+6xPWM RX

Package Includes:

• 1 * ER6 2.4GHz ELRS PWM Receiver
• 1 * Voltage telemetry wire (Type-B)
• 1 * CRSF wire
• 1 * ELRS- RX- SBUS wire
• 1 * User Card

ER6 Receiver is installed with ExpressLRS as standard.

ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It’s highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.

Pair your ExpressLRS with Radiomaster’s top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
