- Model Emax ECOII-2207-1900KV
- KV 1900
- Framework 12n14p
- No. of Cells 3-6s
- Maximum Thrust 2020g(on 6s)
- Precision bearing

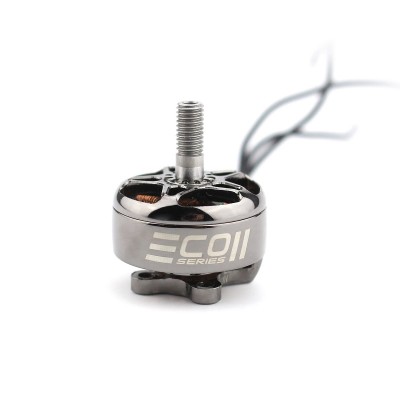

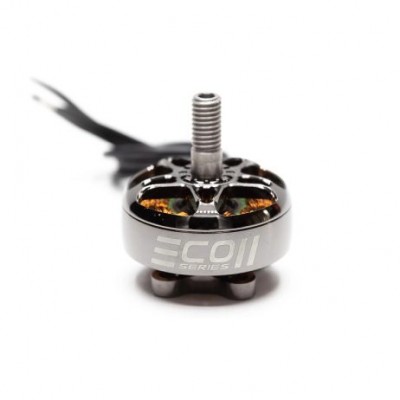

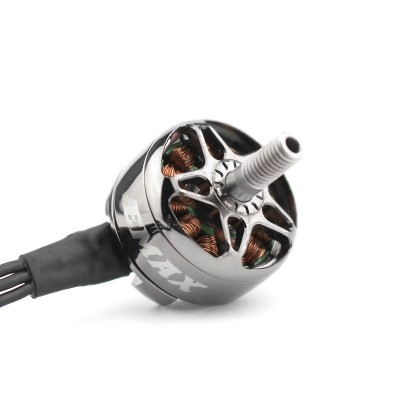

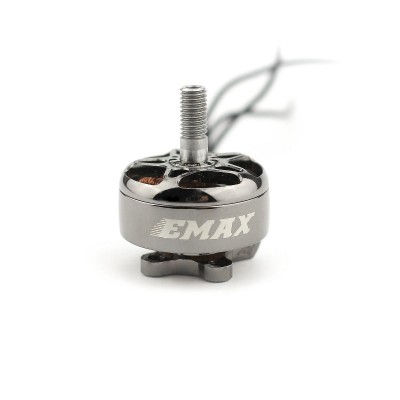

This is an Emax ECOII-2207-1900KV Brushless Motor.
The engineers at Emax are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors that further improved performance and durability while retaining the same affordability. Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek, modern design destined to satisfy the need for both aesthetics and durability.
In order to improve the performance of its predecessor, the ECO II utilises N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust are generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation. The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.
Features:
- Precision bearing
- Steel shaft
- Anodizing
- 19 x 19mm hole pattern
- Multi-strand winding.

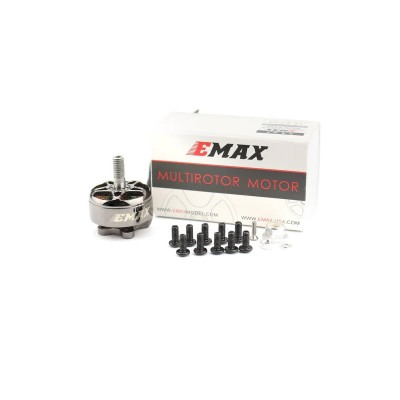

Package Includes:
5 x M3 x 8mm Screw
5 x M3 x 7mm screw
5 x M3 x 6mm screw
1 x Aluminium M5 nylock nut
1 x Washer and screw forthe shaft
| Motor KV (RPM/V): | 1900 |
|---|---|
| Motor Type: | Brushless Motor |
| Compatible LiPO Batteries: | 3S to 6S |
| Framework | 12N14P |
| Length (mm): | 33.1mm |
| Diameter | 27.5mm |
| Maximum Thrust (gm) | 2020g(on 6s) |
| Compatible Prop (inch): | 5″-5.5″ |
| Weight (g): | 33.6g (w/o silicone wire) |
| Prop Adapter Shaft Thread | M5 |
| Shipping Weight | 0.055 kg |
| Shipping Dimensions | 7 × 4 × 4 cm |
