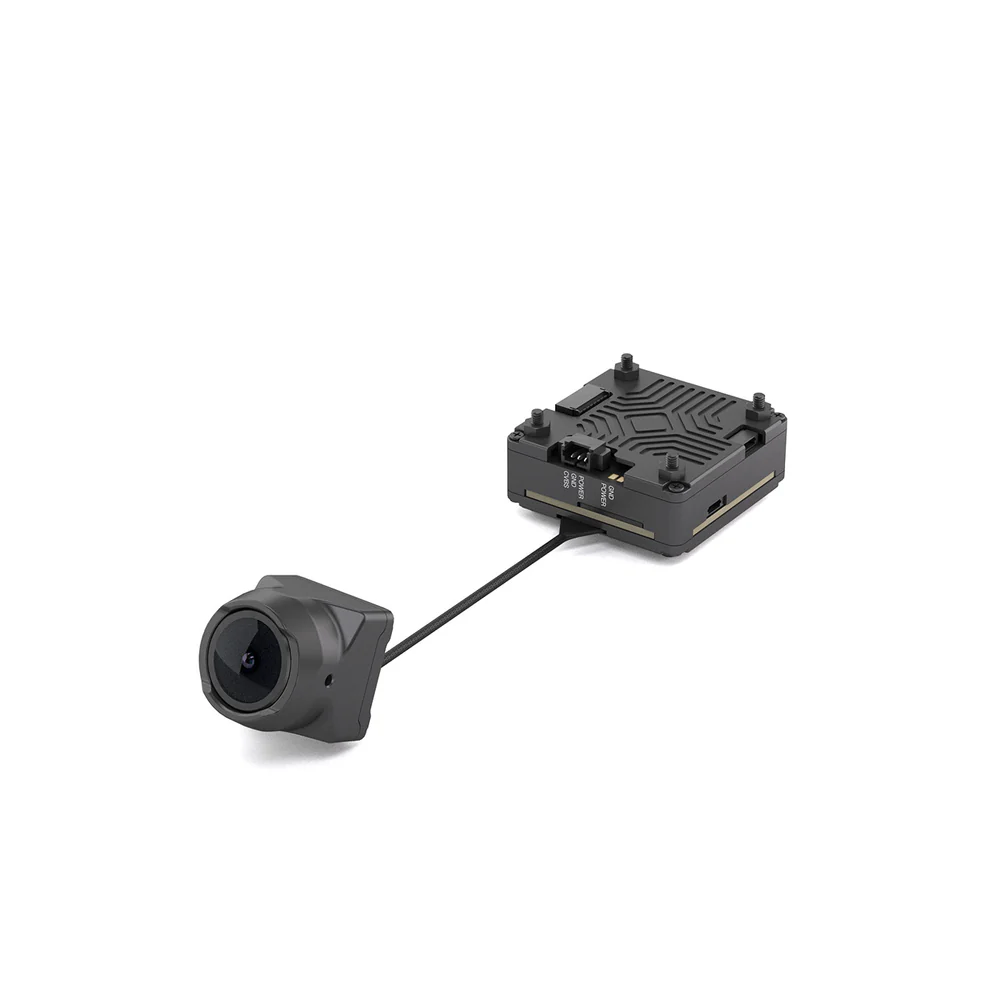

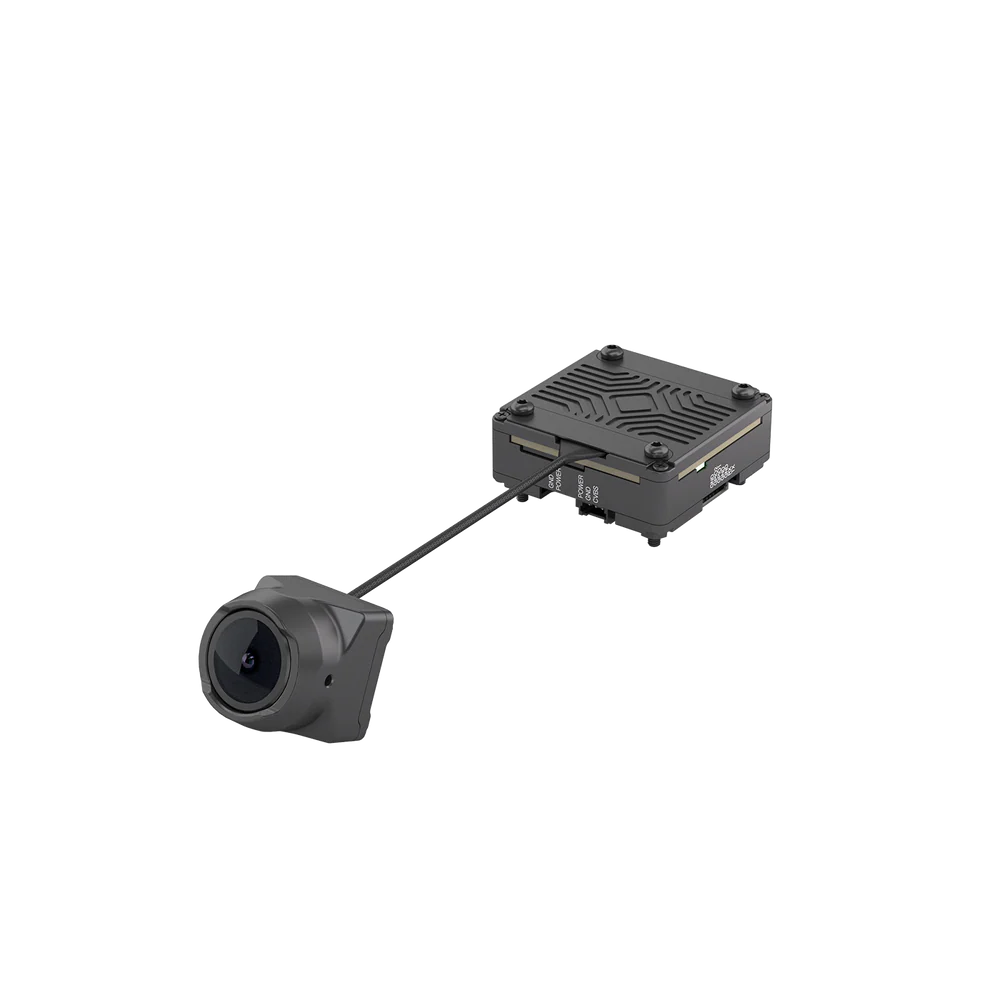

CaddxFPV Farsight Analog Camera

The CADDXFPV Farsight FPV Analog Camera features a 1/2″ high-sensitivity CMOS sensor delivering up to 1500TVL resolution with Wide Dynamic Range for crisp, detailed footage in varied lighting. Its ultra-low 0.01Lux threshold ensures excellent low-light performance, while the 1-8X digital zoom controlled via flight controller offers versatile framing. With an expansive 122.5° horizontal field of view and a compact, lightweight design consuming less than 2W, it’s optimized for professional-grade FPV racing and freestyle drones.

Industry-Leading Smart Zoom For FPV

Take your FPV flying to the next level with smart zoom. Get crystal-clear, precise zoom adjustments—Whether you’re racing or zooming in on faraway shots. AI-powered for smooth, real-time action.

8x Fast Zoom

Zoom in fast with 8x magnification for super sharp details and instant clarity. Perfect for fast action and getting clear, close-up shots in the moment.

Quick PWM Control

Use flight control to output PWM signal to achieve zoom operation Reset control: High magnification quickly switches to 1x magnification, and resets through IO defined switches.

Uses 1/2 Inch Image Sensor

1/2 inch image sensor improves light sensitivity for sharper, vibrant visuals. With 122.5° FOV and 4:3 output, enjoy a wide, clear, distortion-free view.

Compact and Light

Only 19mm×19mm, No compromise on performance despite its compact form.

Supports Analog Output Function

With CVBS output, it works seamlessly with the majority of analog systems available.

Applicable Scenarios

The Farsight analog camera excels in complex environments, delivering clear and stable visuals for FPV flights, wildlife observation, industrial inspection, and emergency search and rescue missions.

Specifications
Model	Caddx Farsight
Image Sensor	1/2 inch
Illuminance	0.01Lux
Focal Length	2.2mm
FOV	122.5°(H) x 92.2°(V) x 155°(D)
Horizontal Resolution	1500TVL
Aspect Ratio	4:3
Zoom Ratio	1-8X
Zoom Mode	Connect to FC, PWM Control
Video Interface	CVBS
Power Supply Range	9~24V
Power Consumption	<2w
Operating Temperature	-20℃~60℃

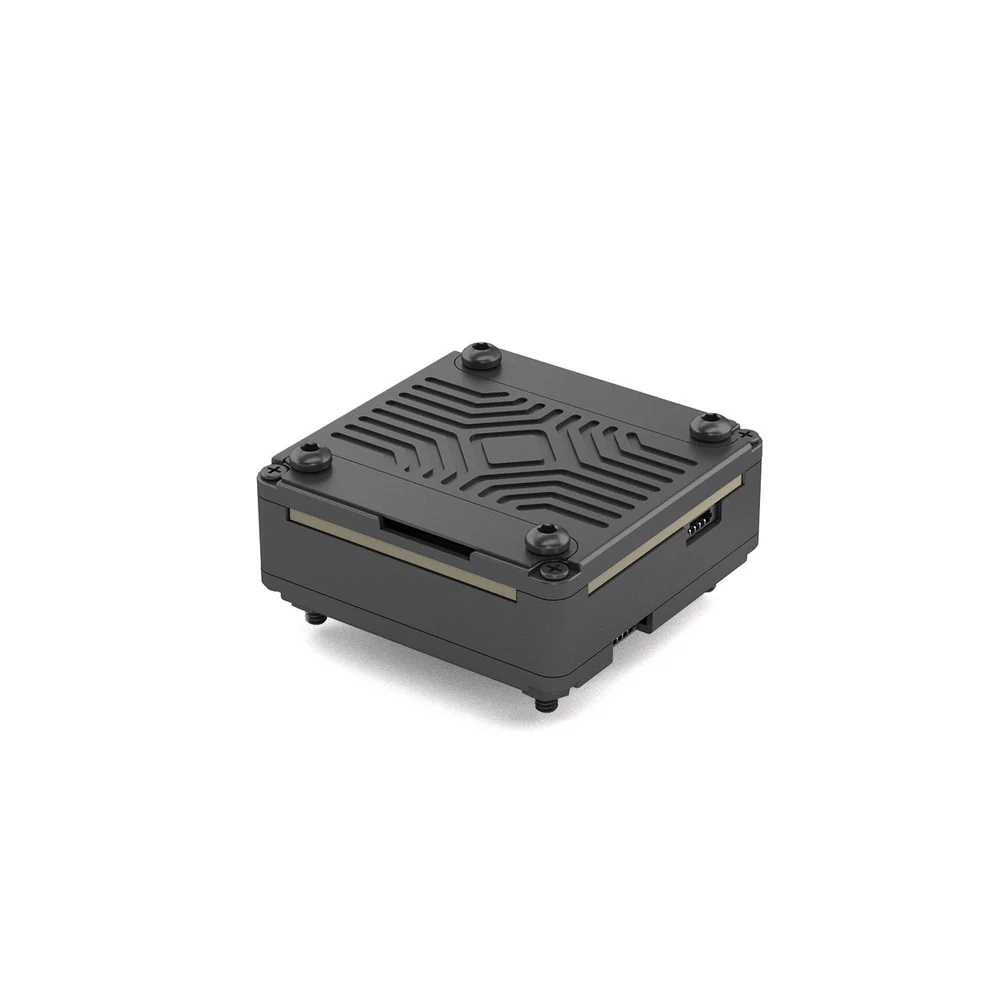

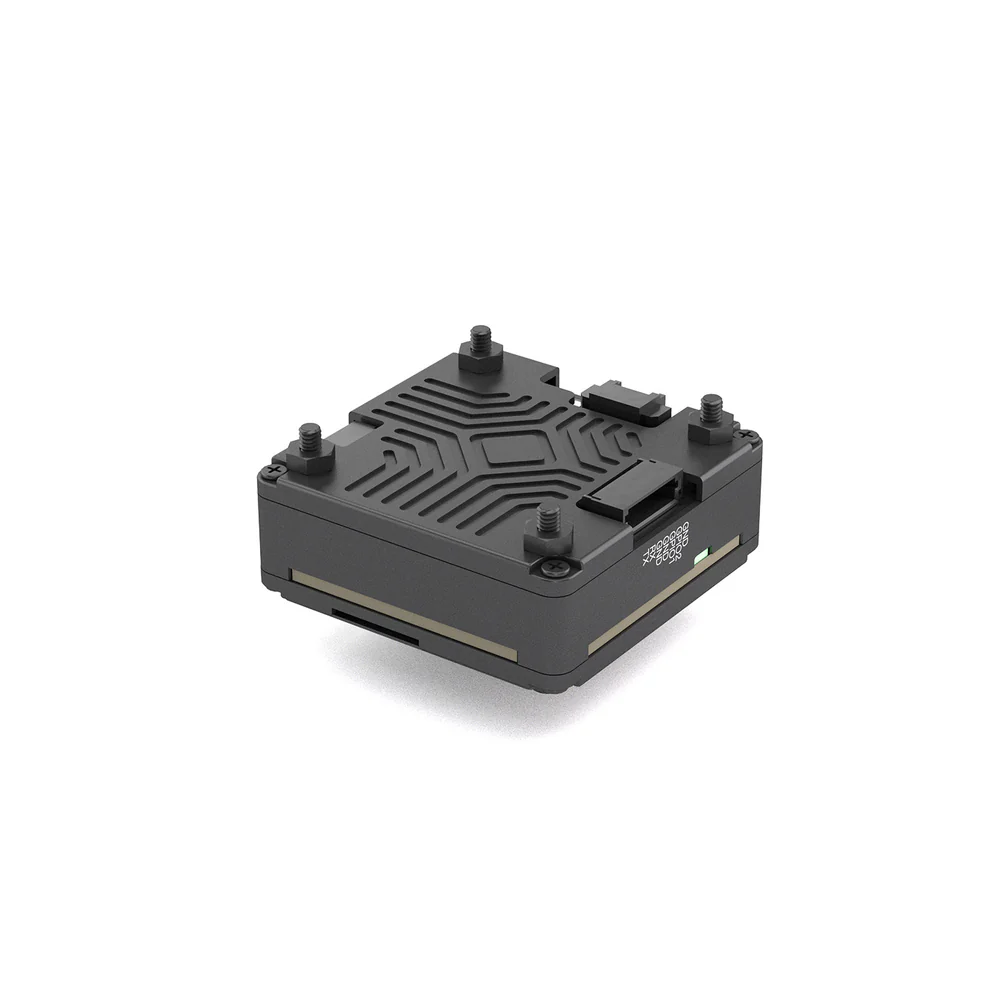

Dimensions	Camera: 19x19x19.5mm AI Box: 33.5×33.5×12.35mm

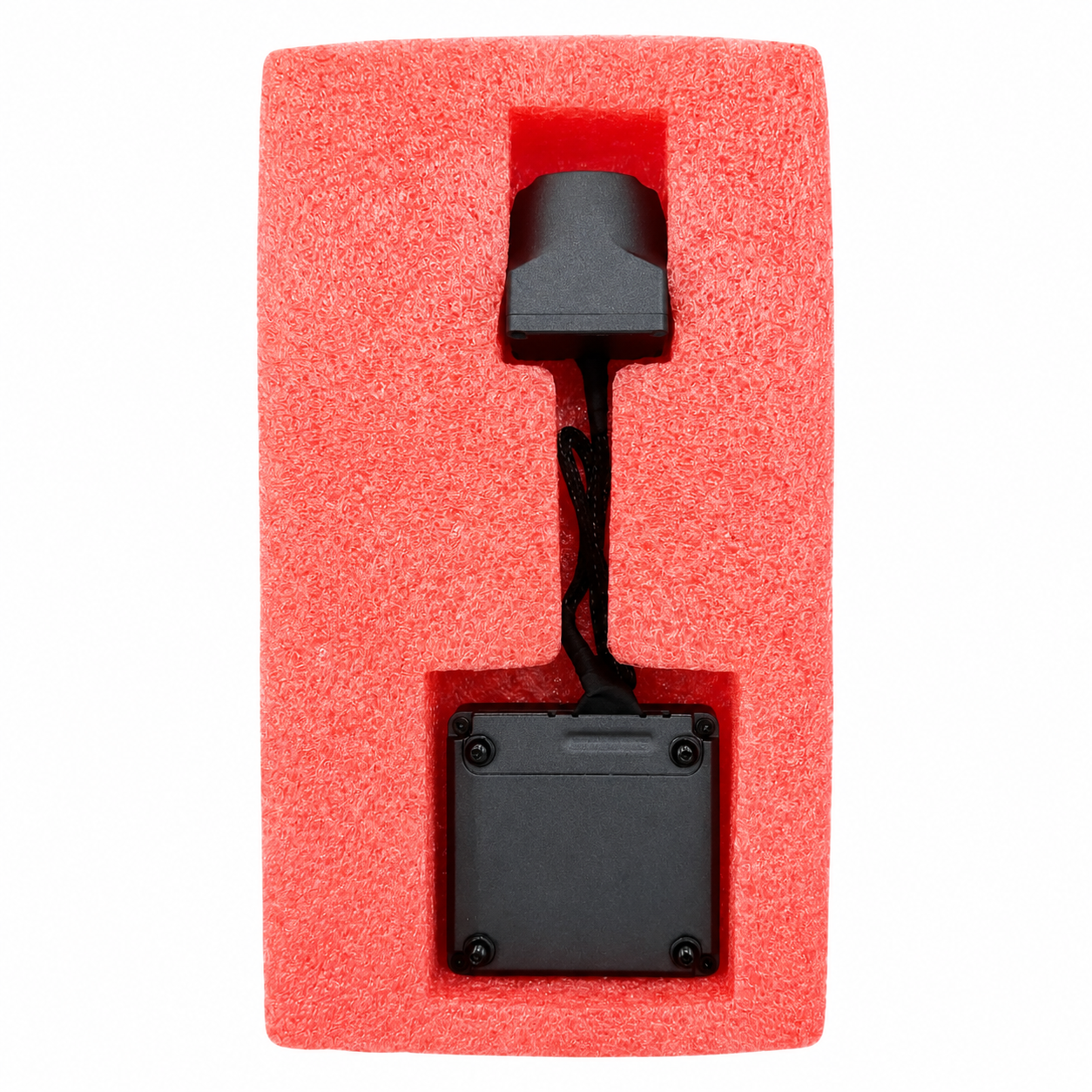

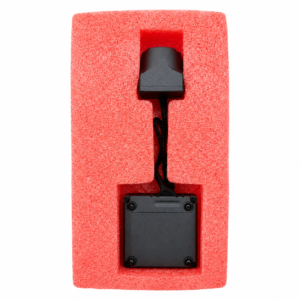

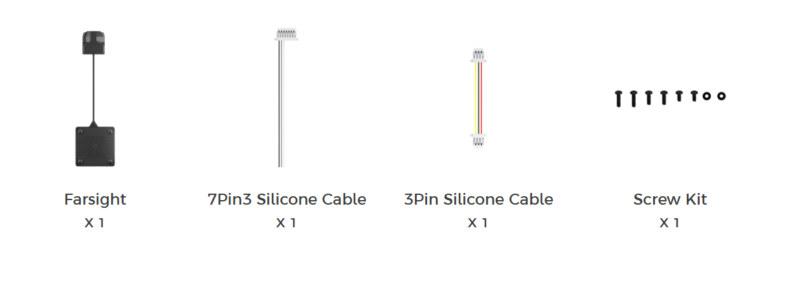

Package Includes:
