Power Distribution Board 200A

Name: Power Distribution Board 200A
Brand: Axldrone
SKU: PDB-AXL-2
Availability: InStock

₹21,004.00 including GST

SKU: PDB-AXL-2 Categories: Electronic Accessories & Parts, Trending Products Brand: Axldrone

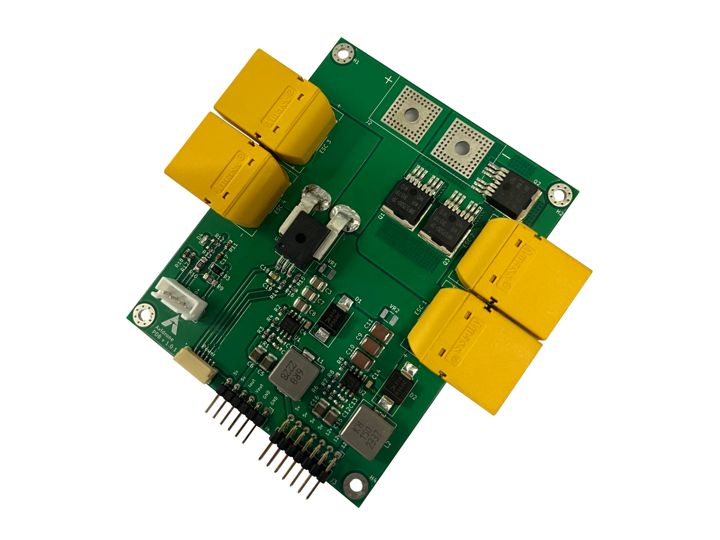

axl PDB is designed for precision power supply needs of an electronic system requiring 48V input while providing stable and regulated 12V and 5V outputs. It has a four XT90 connectors for 15-48V power transfer from battery to ESC/Motor up to 200A. It also has an integrated current sensors for measuring the current up to 200A and voltage up to 60V.

Designed For

Drones
VTOL
Electric Cycle
Electric Skateboard

Features

Capable of handle high current (up to 200A).
Anti spark soft switching for inductive loads.
Input voltage up to 15-48V (12S).
4x XT90 connectors 50A each for ESC with Motor.
Analoge battery voltage and current sensors output for Flight controllers and Robotic applications.
DC – DC convertor from 15-48 V input (up to 12S battery) to 5V 5A output.
DC – DC convertor from 15-48 V input (up to 12S battery) to 12V 5A output.
5V and 12V power output terminals (standard 2.54mm/0.1″ connectors).
Power output for the flight controller (example Pixhawk, Orange cube).
