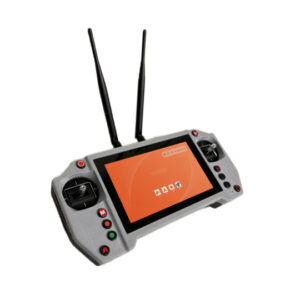

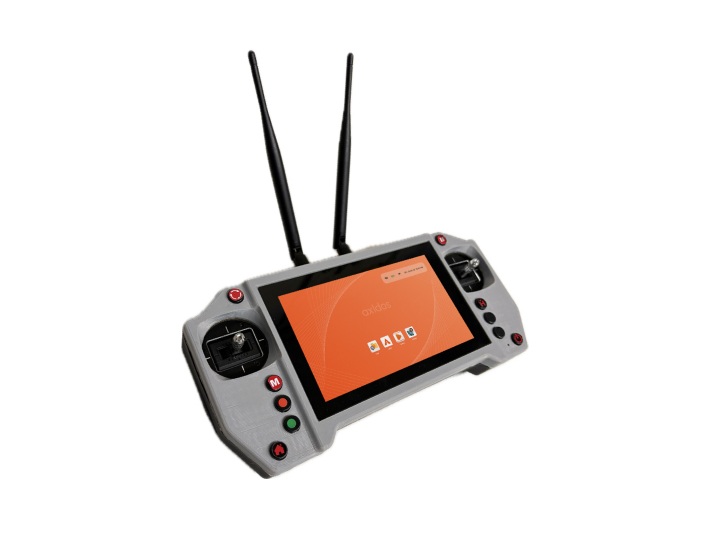

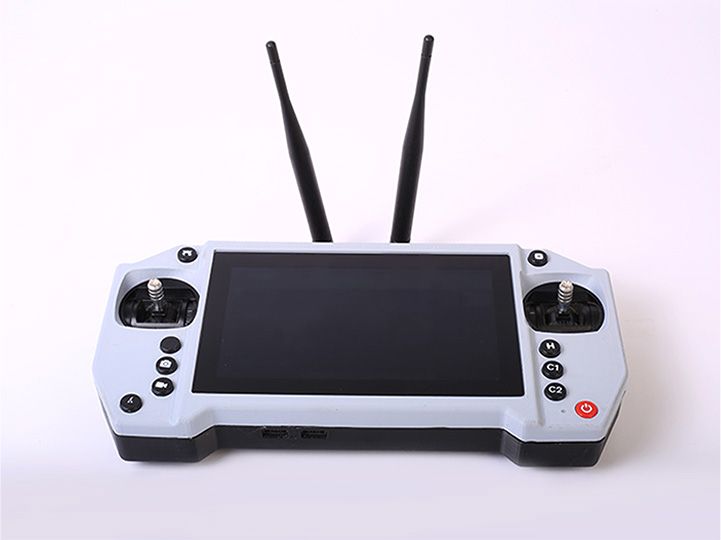

axl OneView – India’s First WPC Certified Remote Controller axl OneView is the latest, most advanced Remote Controller available in the market with an impressive range of 15 km of real-time video transmission and Control in high-definition with low latency. Its advanced processor and integration with the custom-developed Drone Operating System (axlDOS) ensure clear images and extended operational range, even in challenging environments. The system supports seamless but encrypted data transmission via multiple interfaces, including HDMI, WLAN & USB. axl OneView offers advanced mesh networking capabilities, enabling multiple units to interconnect, creating a dynamic, Secure extended network with the real-time broadcast of the video over the internet that enhances coverage and range for large-scale operations. This feature is ideal for complex missions where multiple drones or units must collaborate across vast distances.
Designed For
- Border Surveillance
-
Industrial Equipment Control
Features
- Long-Range Transmission
- Brilliant HD 7-inch touchscreen display
- HD Video & Low Latency
Dimensions
Overall Size 300mm(L) * 140mm(W) * 50mm(H)
Specifications – Click here to download Brochure
-
Display7-inch LCD touch screen
-
Resolution1024 x 600
-
Memory8GB
-
Storage64GB – extendable
-
NetworkWLAN
-
External InterfaceUSB, LAN port, 3.5mm Audio jack
-
Serial InterfaceUSB x 2
-
Industrial Protection GradeIP4
-
Temperature-10°C – 55°C
-
N.W930 Grams
-
Battery Life3 Hours
-
Battery Capacity2000mAh(3 Cell)
-
AntennaDual Antenna 2.4Ghz
-
Working Frequency2.4GHZ
-
RF Power30dBM@CE/FCC
-
Remote Control Range15 KM
-
Channel16
-
ProcessorIntel N5105
-
Operating SystemAXLDOS secure O/S
-
ExtendabilityN+1 configuration and realtime broadcasting
| Weight | 1 kg |
|---|---|
| Dimensions | 20 × 20 × 10 cm |
